GTX 480 and GTX 470 Hydro Copper FTW Edition

EVGA GTX 480/470 Hydro Copper FTW – Be Cool

The world’s fastest GPU now meets the world’s best waterblock. EVGA teamed up with Swiftech to deliver a solution that truly goes “For The Win!” The EVGA Hydro Copper waterblock uses a 0.6x0.6mm thin pin matrix, and the base plate is made of chrome plated electrolytic C110 copper which gives it a clean look. The integrated heat pipe connects to the power mosfet heatsink for optimal cooling.

EVGA 480/470 - NVIDIA GF100 Technology - EVGA OC Scanner

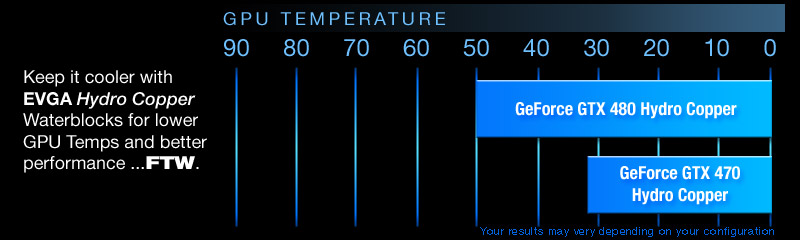

Hydro Copper FTW Temperatures

High performance, high flow fittings are also included in both 1/2” and 3/8” sizes. These barbs are 2-way, 3-way and even 4-way SLI compatible! Below is an example of the remarkable GPU temperature difference:

Features:

  • C110 Copper baseplate
  • Integrated 0.6mm thin pin matrix for optimal thermal transfer
  • Extra high-flow designed internals and barbs give minimum flow restriction, allowing lowest temps possible
  • Cools GPU, VREG, and memory
  • Includes both high quality 1/2” and 3/8” high flow fittings
  • Flexible barb design allows 4 different fitting configurations, giving maximum flexibility for water cooling placement
  • Reduces temperatures
EVGA GTX 480/470 Hydro Copper FTW Temperature Comparison Special Edition Precision Rocket Sled Demo

Image Coming Soon
EVGA GeForce GTX 480 Hydro Copper FTW
Part Number 015-P3-1489-AR
Core Clock Speed 752MHz
CUDA Cores 480
Memory Clock Speed 3800MHz
Memory Bandwidth 182.4GB/sec
Processor Clock Speed 1504MHz
Bus PCIe 2.0
Interface DVI-I, DVI-I, Mini-HDMI
Product Warranty Limited Lifetime warranty
Upon registration within 30 days


Image Coming Soon
EVGA GeForce GTX 470 Hydro Copper FTW
Part Number 012-P3-1479-AR
Core Clock Speed 650MHz
CUDA Cores 448
Memory Clock Speed 3402MHz
Memory Bandwidth 136GB/sec
Processor Clock Speed 1300MHz
Bus PCIe 2.0
Interface DVI-I, DVI-I, Mini-HDMI
Product Warranty Limited Lifetime warranty
Upon registration within 30 days
