The New 4-Way SLI Platform Has Arrived!

The ultimate motherboard and the ultimate single-GPU graphics card are here. If you want to break records, this is the platform for you.

EVGA is proud to announce the world’s first 4-way SLI capable setup, the EVGA GTX 285 Classified and X58 Classified 4-Way SLI, but the innovative features do not stop there. Everything on the GTX 285 Classified is designed for the extreme enthusiast, from the 8 Phase Digital PWM to the X-Cool Switch and Dedicated Voltage readpoints! These features and more allow you to do what matters; get the most from your hardware.

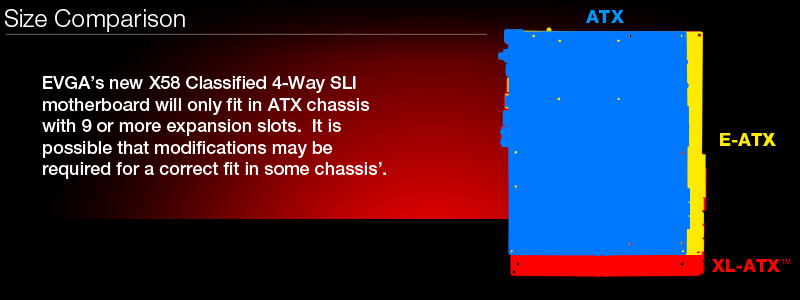

In addition to this innovative graphics card, EVGA is also announcing the EVGA X58 Classified 4-Way SLI Edition, this motherboard has an impressive 7 PCIe Expansion slots allowing you to combine up to 4 EVGA GTX 285 Graphics cards for extreme performance! Important note: a case with 9 or more expansion slots is required, 10 for 4-Way SLI.

So just what kind of performance can you expect to see with 4-Way GTX 285’s? Well just ask extreme overclockers Vince “k|ngp|n” Lucido and Peter “Shamino” Tan. They were able to break not 1, not 2, not even 3 but 4 3DMark World Records with this incredible setup! Motor City Overclocking Event

Now is your chance to be one of the first to own this record breaking hardware! You can pre-order below, products are shipping soon.

Stage one of the global F1 over-clocking competition is complete with first round at 3D mark vantage.

It is a fantastic result to see that the top two teams achieving superior scores here both using EVGA product. Team EVGA with an extreme platform using 4x GTX285 classified and EVGA 4-way Classified, and at a reference level Team AU using 2 x GTX295 and EVGA Classified. This competition result is clearly showing unbeatable performance with EVGA Classified platform setting new standards.


EVGA GTX 285 Classified Graphics Card

  • GeForce GTX 285 GPU
  • 4-Way SLI Support
  • 8 Phase Digital PWM
  • Low ESR/ESL Film Capacitor
  • X-Cool jumper for Extreme OC

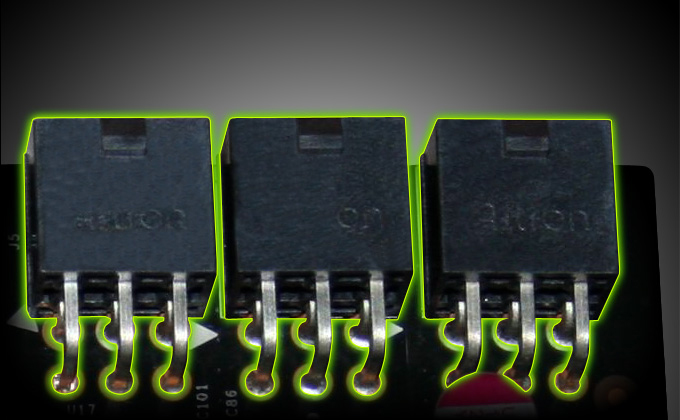

  • 3 PCIe 6 pin power connectors
  • Dedicated Voltage Read Points

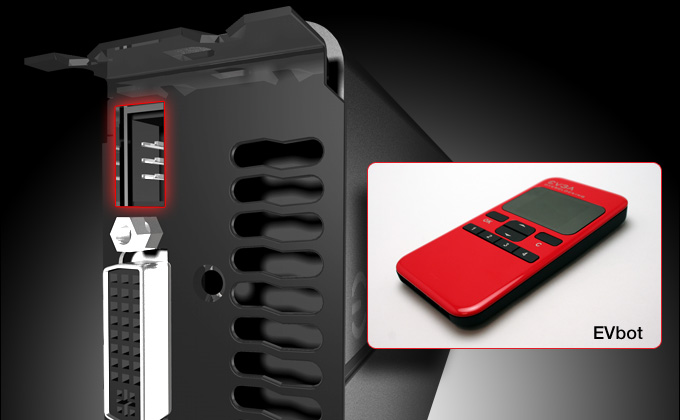

  • EVGA EVbot support

EVGA X58 SLI Classified 4-Way SLI Motherboard

  • Intel® X58 Express Chipset with the ICH10R Southbridge
  • 7 PCIe Slots for 2-Way, 3-Way, 4-Way SLI or CrossFireX Support

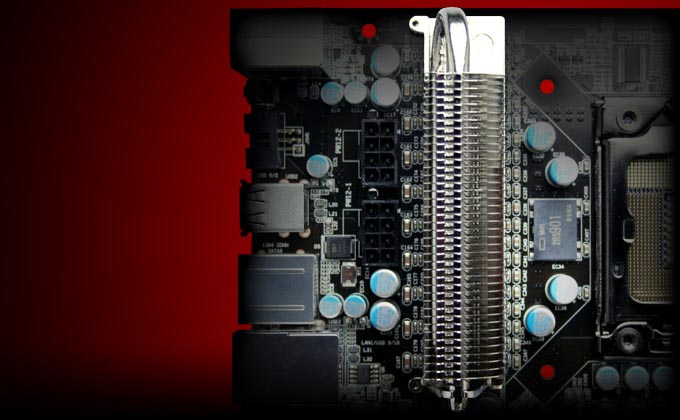

  • 10 Phase Digital PWM with Switching Frequency of 1333KHz
  • Low ESR/ESL Film Capacitor
  • 100% Solid State Capacitors
  • EVGA E-LEET Tuning Utility Software
  • EVGA EVbot Support
  • EVGA ECP V2 (EVGA Control Panel)

For 4-way SLI, EVGA recommends a chassis with 10 expansion slots and a PSU of 1500w and greater.

EVGA X58 Classified 4-Way SLI
Part Number 170-BL-E762-A1
CPU Support Intel Socket 1366
Chipset Intel X58
Memory Support Dual or Triple Channel DDR3
SLI Support 4-Way
SATA Header 9
SATA Type 3GB/sec
USB Ports 12
PCIE Slot 7 x PCIe x16/8
Integrated LAN 2 x 10/100/1000
Product Warranty Limited Lifetime upon registration
