EVGA Z77 and EVGA Z75 Motherboards
The Future of High Performance Computing
Welcome to the future. The EVGA Z77 and Z75 motherboards offer the perfect combination of performance and features, delivering a solution that is designed for the next generation of high performance computing.
Z77
Z75
EVGA Z77 FTW Awards
EVGA Z77
FTW
EVGA Z77 FTW
- Chipset – Intel Z77
- SLI – 4-Way
- SATA – Native 6G/3G
- USB – Native USB 3.0
- Memory Support – 4 DIMM Dual-Channel DDR3 2133MHz+ (Up to 32GB)
- PCI-E Slots – 5 PCI-E 3.0 16x/8x slots
- Capacitors – POSCAP/Solid State
- Form Factor – EATX
- Ethernet – Gigabit NIC
- Lucid Virtu MVP Support
Internal I/O
- 2x USB 3.0 Headers
- 4x USB 2.0 Headers
- 4x SATA 6G Ports
- 4x SATA 3G Ports
- 1x 1394b Firewire Header
External I/O

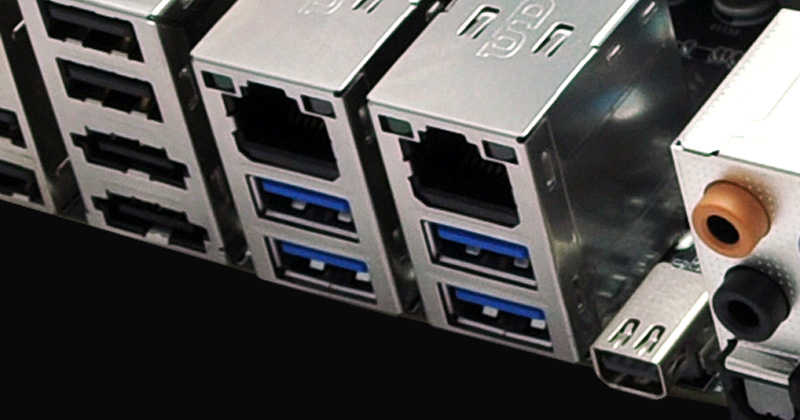

- 4x Rear Panel USB 3.0 Ports
- 6x Rear Panel USB 2.0 Ports
- 8x Channel Audio + Optical
- 1x Mini-DisplayPort
- Dual Gigabit Ethernet
- 2x E-SATA Ports
Features
- 7+1 Phase PWM
- Onboard Power, Reset and Clear CMOS
- PCI-E Disable Switches
- E-LEET Tuning Utility
- Triple BIOS Support
- Onboard CPU Temp Monitor
- 300% More Gold Content
- POSCAP Capacitors
- EZ Voltage Read Points
- 8+8PIN CPU Power
- Dark Mode Jumper
Stinger
EVGA Z77 Stinger
- Chipset – Intel Z77
- SATA – Native 6G/3G
- USB – Native USB 3.0
- Memory Support – 2 DIMM Dual-Channel DDR3 2133MHz+ (Up to 16GB)
- PCI-E Slots – 1 PCI-E 3.0 16x
- Capacitors – POSCAP/Solid State
- Form Factor – Mini-ITX
- Ethernet – Gigabit NIC
Internal I/O
- 1x USB 3.0 Headers
- 2x SATA 6G Ports
- 2x SATA 3G Ports
External I/O
- 4x Rear Panel USB 3.0 Ports
- 2x Rear Panel USB 2.0 Ports
- 8x Channel Audio + Optical
- 1x Mini-DisplayPort
- Bluetooth
- Gigabit Ethernet
- 2x E-SATA Ports
- 1x HDMI Support
Features
- 7+1 Phase PWM
- Onboard Power, Reset and Clear CMOS
- E-LEET Tuning Utility
- Onboard CPU Temp Monitor
- EZ Voltage Read Points
- Mini PCI-E
EVGA Z75
SLI
EVGA Z75 SLI
- Chipset – Intel Z75
- SLI – 2-Way + PhysX
- SATA – Native 6G/3G
- USB – Native USB 3.0
- Memory Support – 4 DIMM Dual-Channel DDR3 2133MHz+ (Up to 32GB)
- PCI-E Slots – 2 PCI-E 3.0 16x/8x slots
- Capacitors – POSCAP/Solid State
- Form Factor – ATX
- Ethernet – Gigabit NIC
Internal I/O
- 1x USB 3.0 Headers
- 2x USB 2.0 Headers
- 4x SATA 6G Ports
- 4x SATA 3G Ports
External I/O
- 2x Rear Panel USB 3.0 Ports
- 6x Rear Panel USB 2.0 Ports
- 8x Channel Audio + Optical
- 1x Mini-DisplayPort
- Gigabit Ethernet
- 2x E-SATA Ports
Features
- 7+1 Phase PWM
- Onboard Power, Reset and Clear CMOS
- E-LEET Tuning Utility
- Dual BIOS Support
- Onboard CPU Temp Monitor
- POSCAP Capacitors
- EZ Voltage Read Points
Academy
Academy
- Right Angled 24pin Power Connector (EVGA Z77 FTW)
A right angled power connector gives you improved airflow, and optimized cable management. Also, it looks awesome!- Lucid Virtu MVP Support (EVGA Z77 FTW)
Lucid Virtu MVP support allows GPU Virtualization to utilize both integrated GPU and discreet.

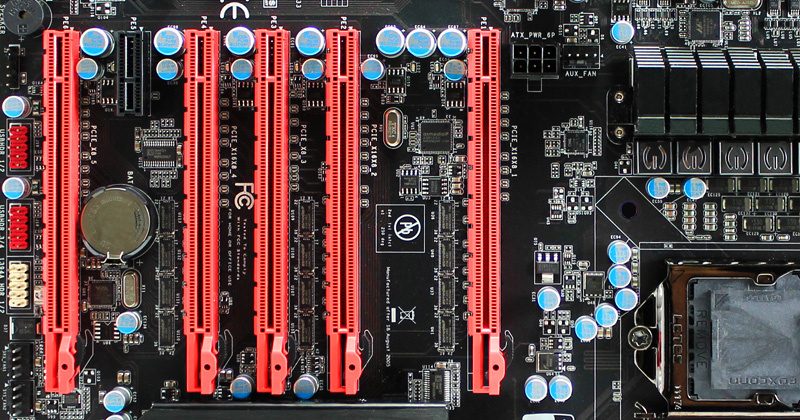

- Up to 4-Way SLI Support (EVGA Z77 FTW)
Full support for the ultimate graphics card configuration.- Native USB 3.0/SATA 6G Support

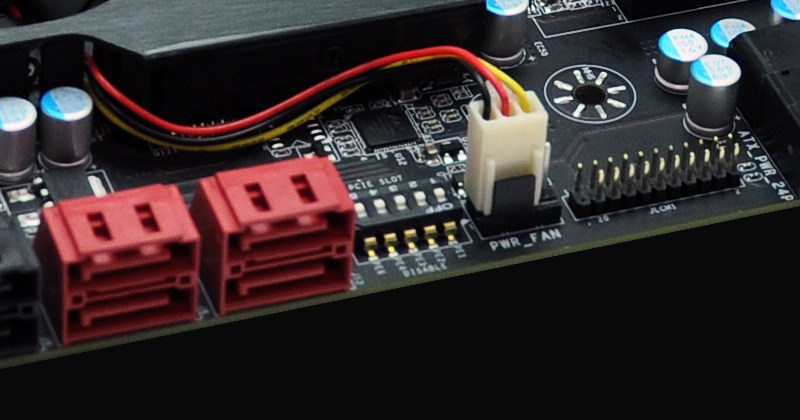

Native on select USB 3.0 and SATA 6G ports, no 3rd party IC needed. Improved performance and compatibility.- PCI-E Disable Switches (EVGA Z77 FTW)
The ultimate tool for any enthusiast. This makes performance testing/tuning and troubleshooting a breeze.- Robust Power (EVGA Z77 FTW)

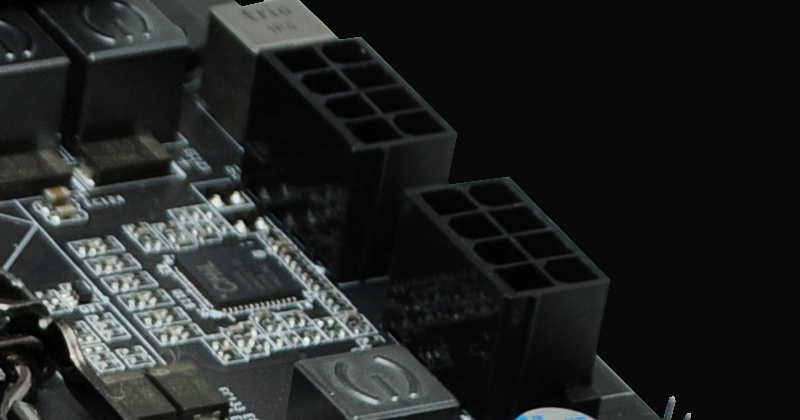

Dual 8pin CPU power inputs provide up to 300W for CPU power and two options for PCI-E power input.- Onboard Features

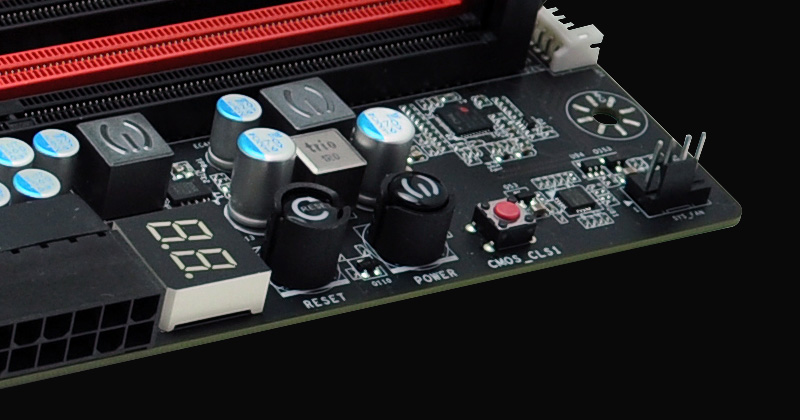

Onboard Power, Reset, Clear CMOS and a Debug LED that shows CPU temperature and diagnostics!- Engineered for Overclocking
- Robust overclocking features and software. Designed by and for the extreme enthusiast!
Software
Software

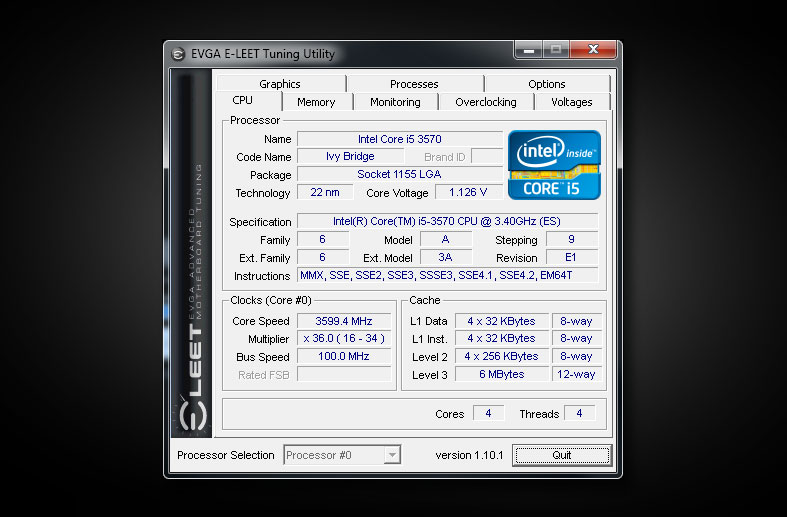

EVGA E-LEET Tuning Utility
EVGA now gives you more with the EVGA E-LEET Tuning Utility. This utility allows you to easily set your motherboard QPI and system Voltages from within Windows to get your system running at the highest level of performance possible. EVGA E-LEET also includes a validation feature, allowing you to save a CPU screenshot and generates a unique URL, also a Brink OC feature that automatically saves a screenshot with every clockspeed increase.
Article viewed: 132817 times since 9/10/2012
