The EVGA GeForce GTX 1080 featuring EVGA ACX 3.0 cooling has arrived. This new graphics card features NVIDIA's new "Pascal" graphics processor which is the most advanced gaming GPU ever created. This breakthrough GPU delivers industry-leading performance, innovative new gaming technologies, and immersive, next-gen VR.

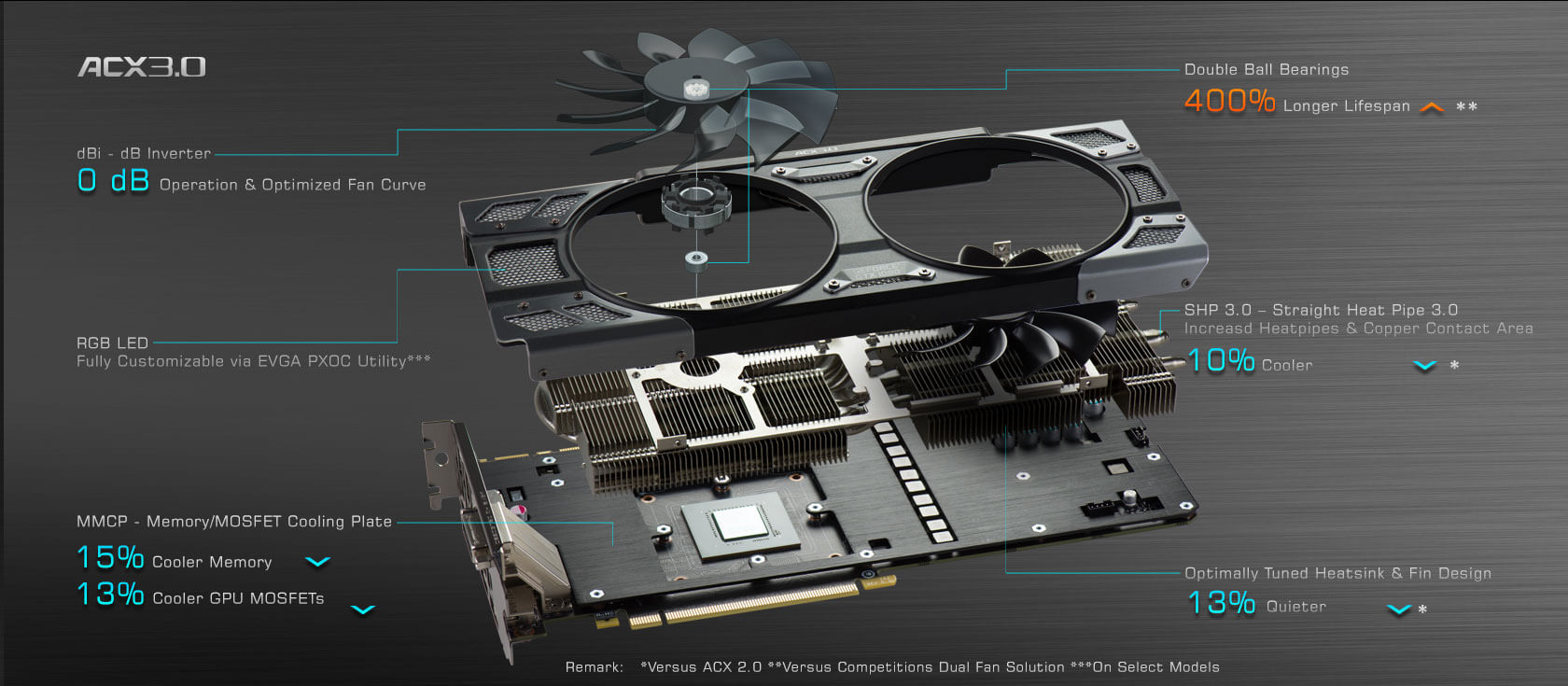

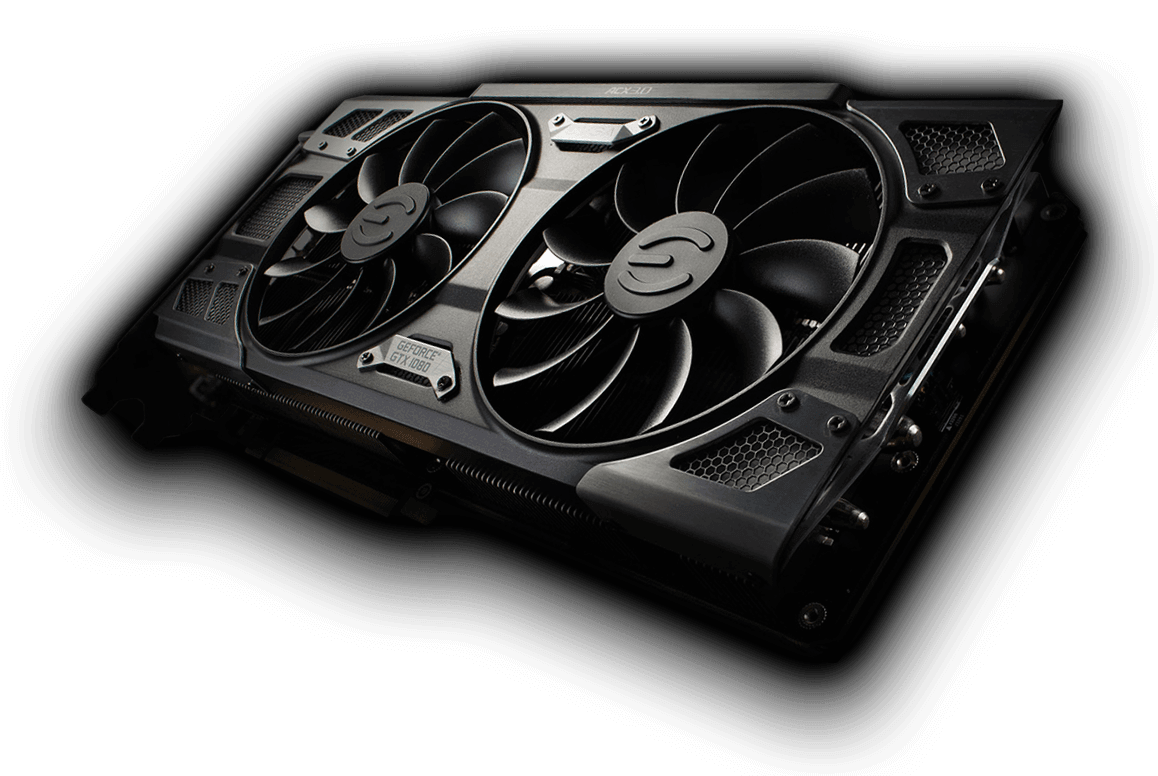

These cards also feature EVGA ACX 3.0 cooling technology. EVGA ACX 3.0 once again brings new and exciting features to the award winning EVGA ACX cooling technology. SHP 3.0 gives increased heatpipes and copper contact area for cooler operation, and optimized fan curve for even quieter gaming. Of course, ACX 3.0 coolers also feature optimized swept fan blades, double ball bearings and an extreme low power motor, delivering more air flow with less power, unlocking additional power for the GPU. Select EVGA ACX 3.0 models will even feature a 10CM fan and RGB LED, allowing complete control over the color from EVGA Precision XOC.

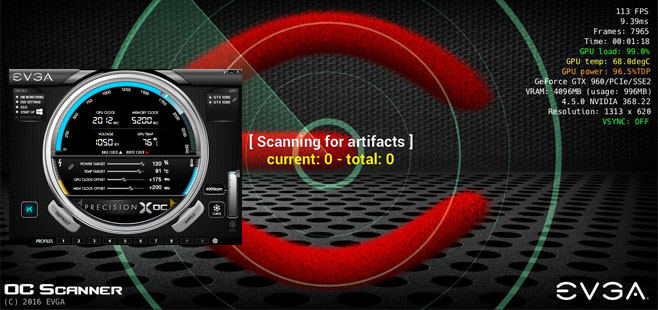

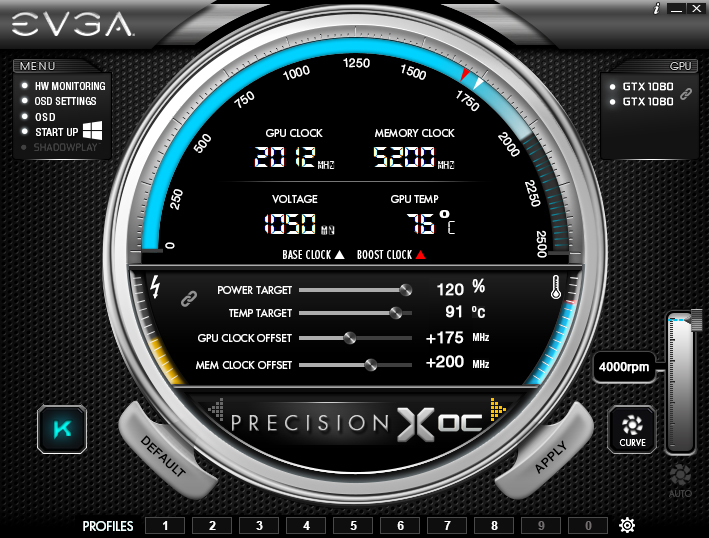

The next generation of EVGA PrecisionX has arrived with EVGA Precision XOC. This new version of Precision is built for the NVIDIA Pascal architecture and combines the best of EVGA Precision and EVGA OC Scanner to give you never before seen overclocking features and built in automatic overclock tuning.

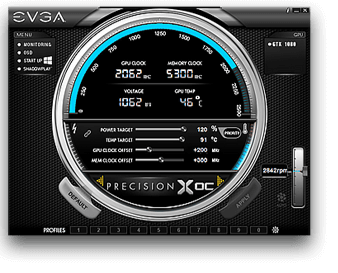

Standard Overclock Mode

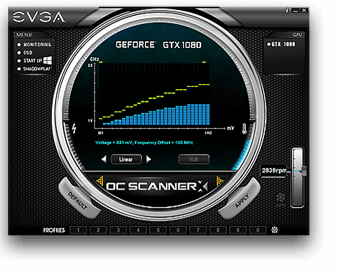

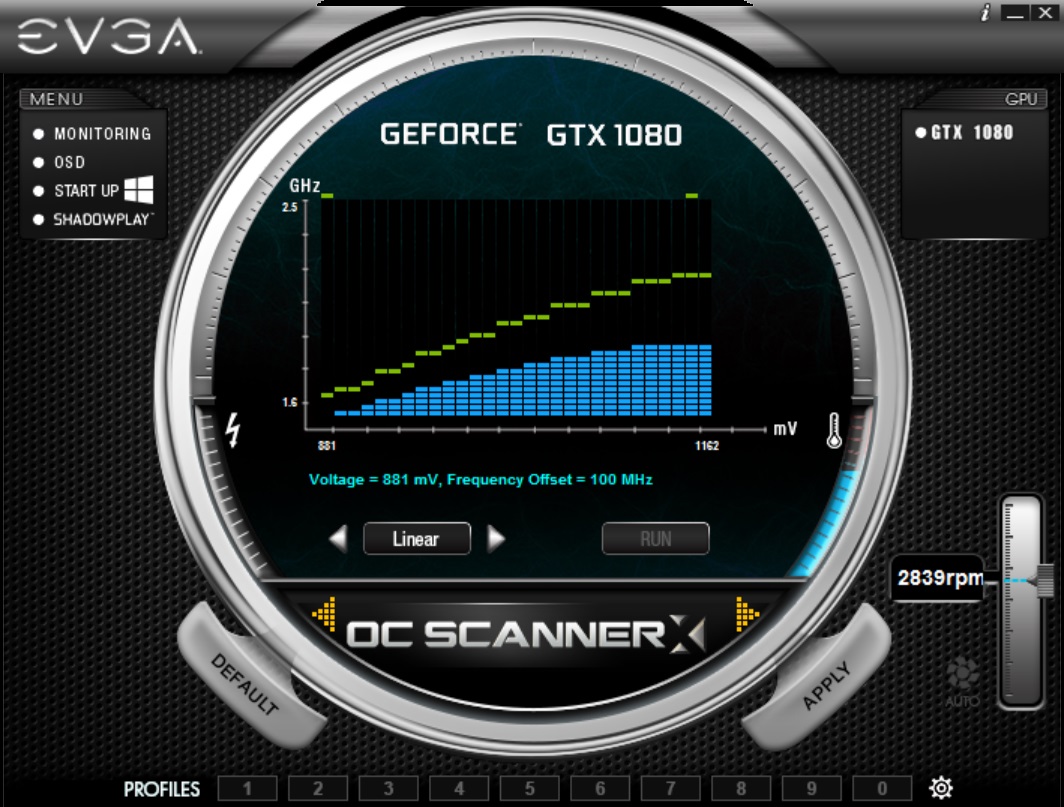

Pascal Linear

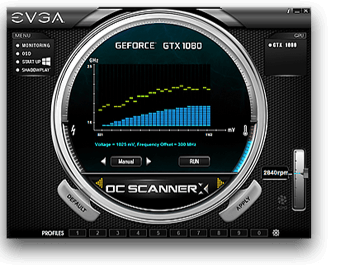

Pascal Manual

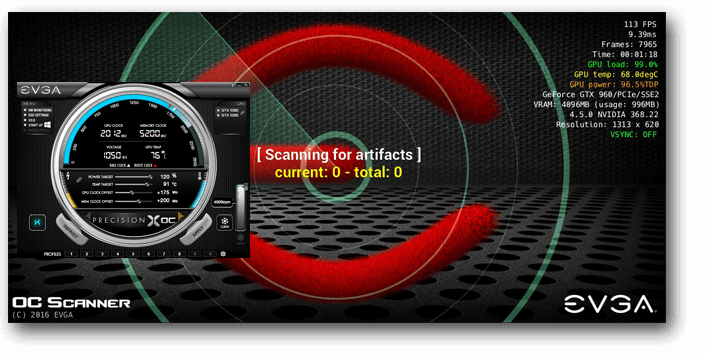

Built In Automatic Tuning
* Available on select models

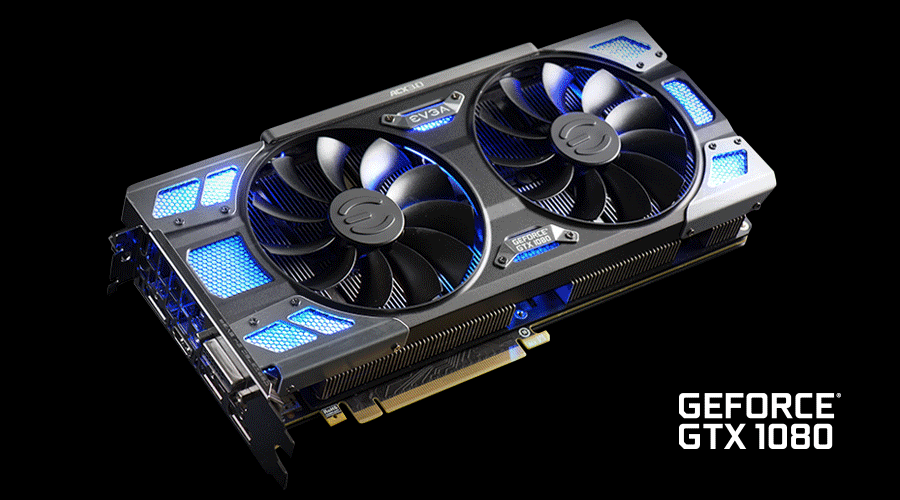

An RGB LED that allows complete control of the color through EVGA Precision XOC.
EVGA ACX 3.0 fans use double ball bearings, which offer 4X longer lifespan than the sleeve bearing fans used by competitors. The oil that is used in sleeve bearing fans makes them vulnerable and prone to failure after time when the oil dries up. Upgrade to EVGA ACX 3.0 and your card will go the distance!
Did you know that power consumption of the fans can directly affect your maximum overclock? The maximum “power target” takes into account the fan power consumption, meaning the lower the power consumption from the fan, the more power available for the card. EVGA ACX 3.0 coolers use more than 4X lower power than competitors allowing for better and more stable overclocks.
Above test conducted with both fans set to the same acoustic level.

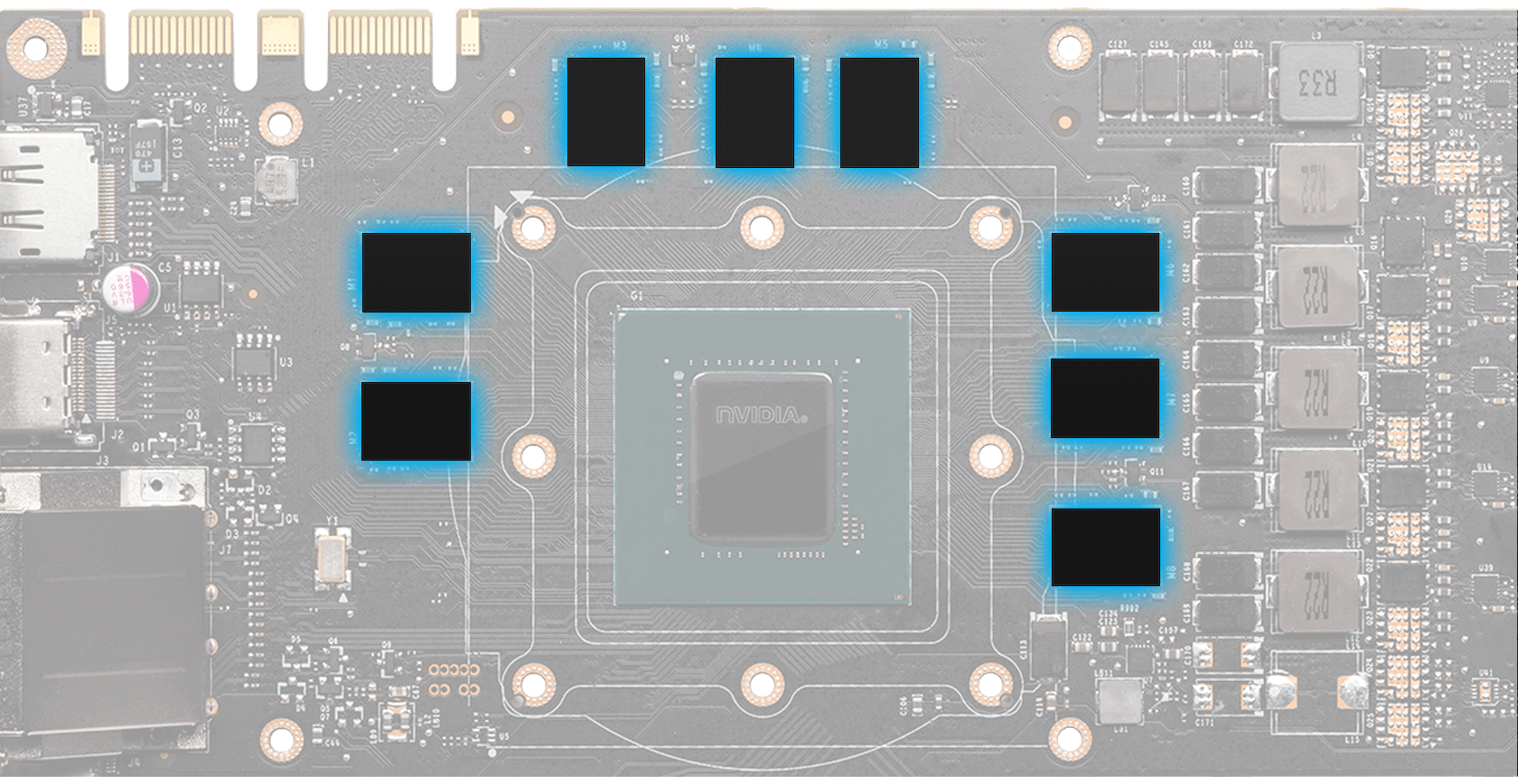

8GB of high performance memory running at extreme Clockspeeds giving you access to higher texture qualities in games and improved 4K gaming performance. Did we mention that this memory is running at an extreme 10,000MHz out of the box??!!
Looking for something even cooler? Achieve gaming bliss when paired up with an EVGA HYBRID or HYDRO water cooler.
NOW AVAILABLE
EVGA GeForce GTX 1080
Core
- CUDA Cores: 2560
- Base Clock: 1721 MHz
- Boost Clock: 1860 MHz
- Bus: PCIe 3.0
- 2-way SLI Ready
Memory
- Memory Detail: 8192 MB GDDR5X
- Memory Bit Width: 256 Bit
- Memory Clock: 10000 MHz
- Memory Speed: 0.2 ns
- Memory Bandwidth: 320 GB/s
Key Features
- 10 Phase Power Design
- Adjustable RGB LED
- Built for EVGA Precision XOC
- EVGA Double BIOS

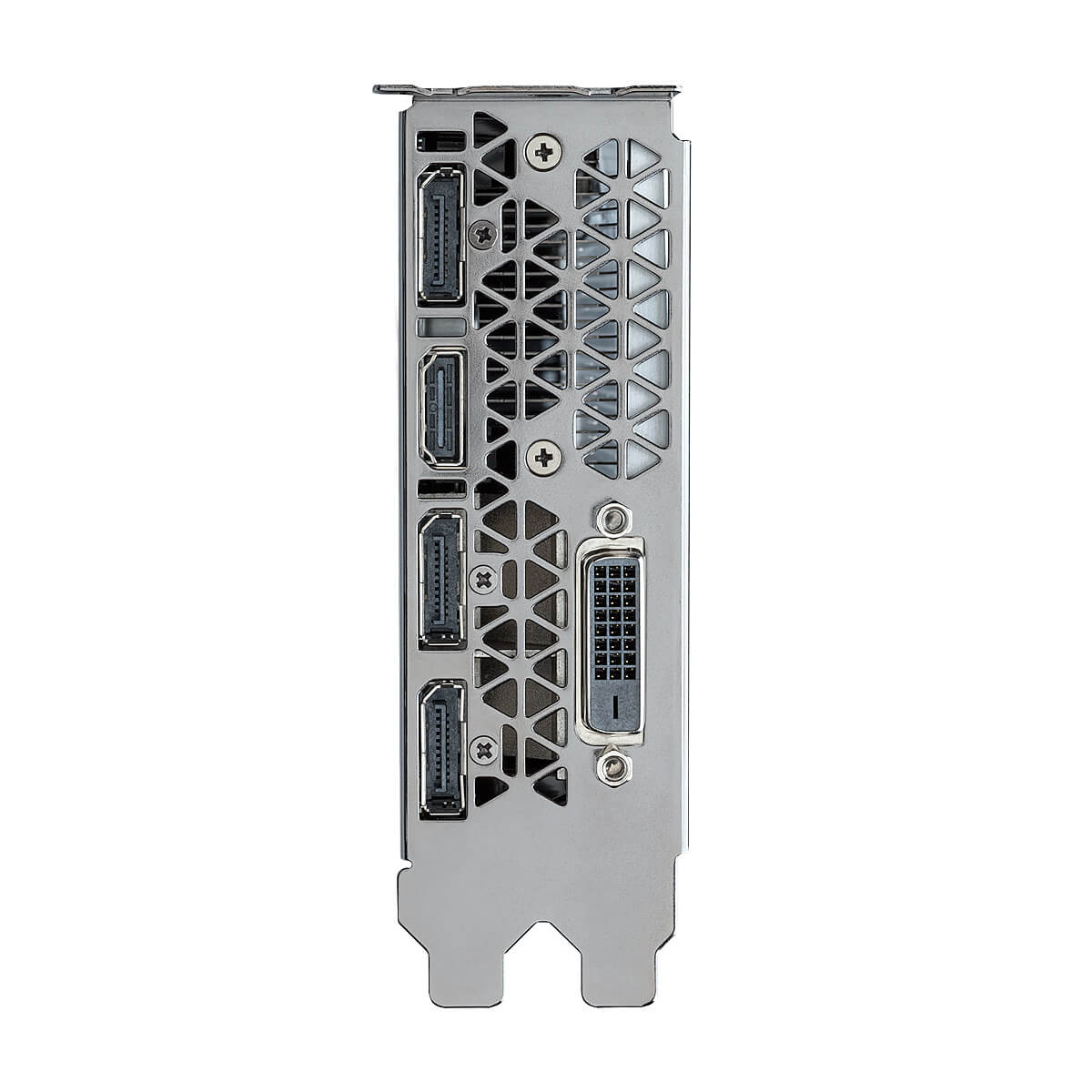

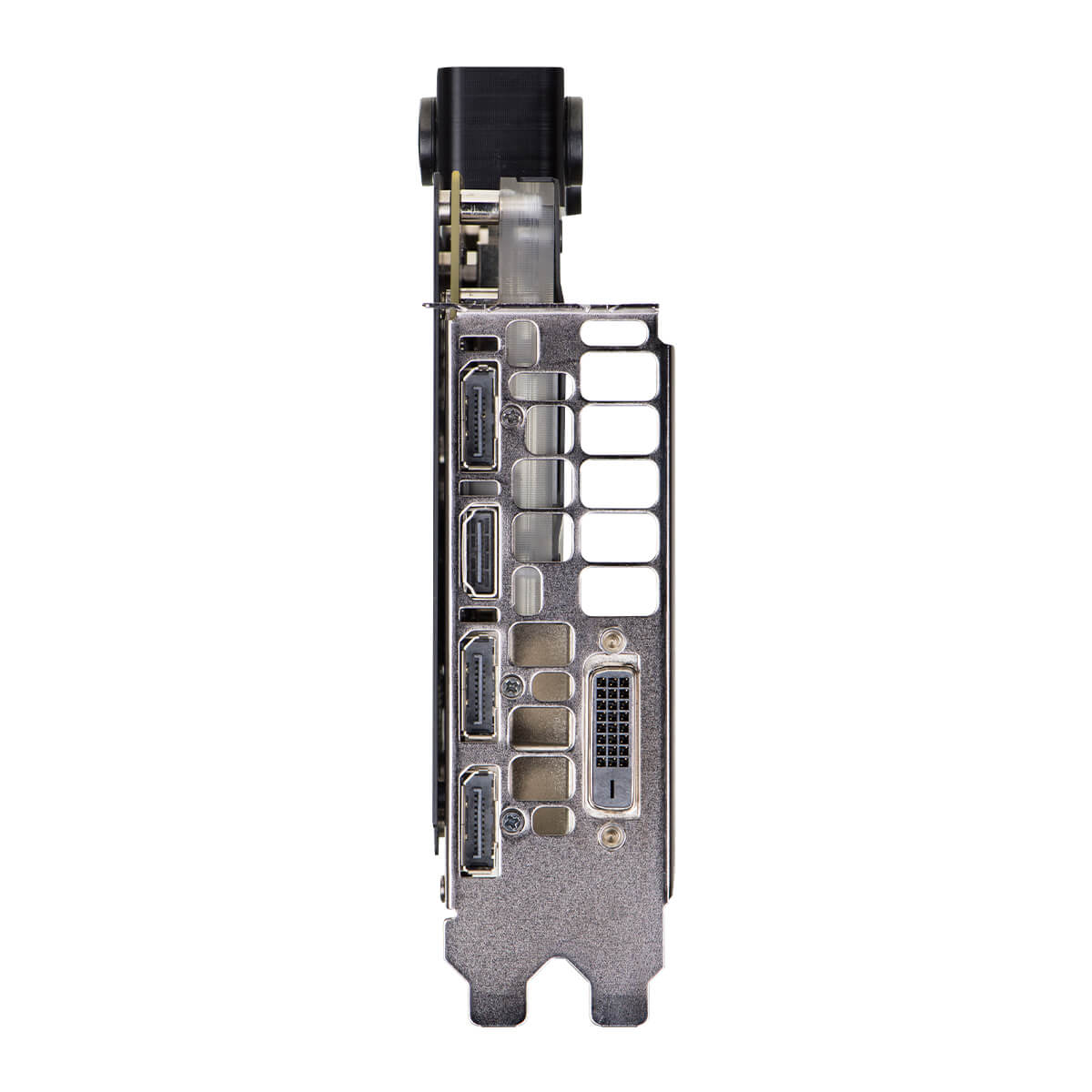

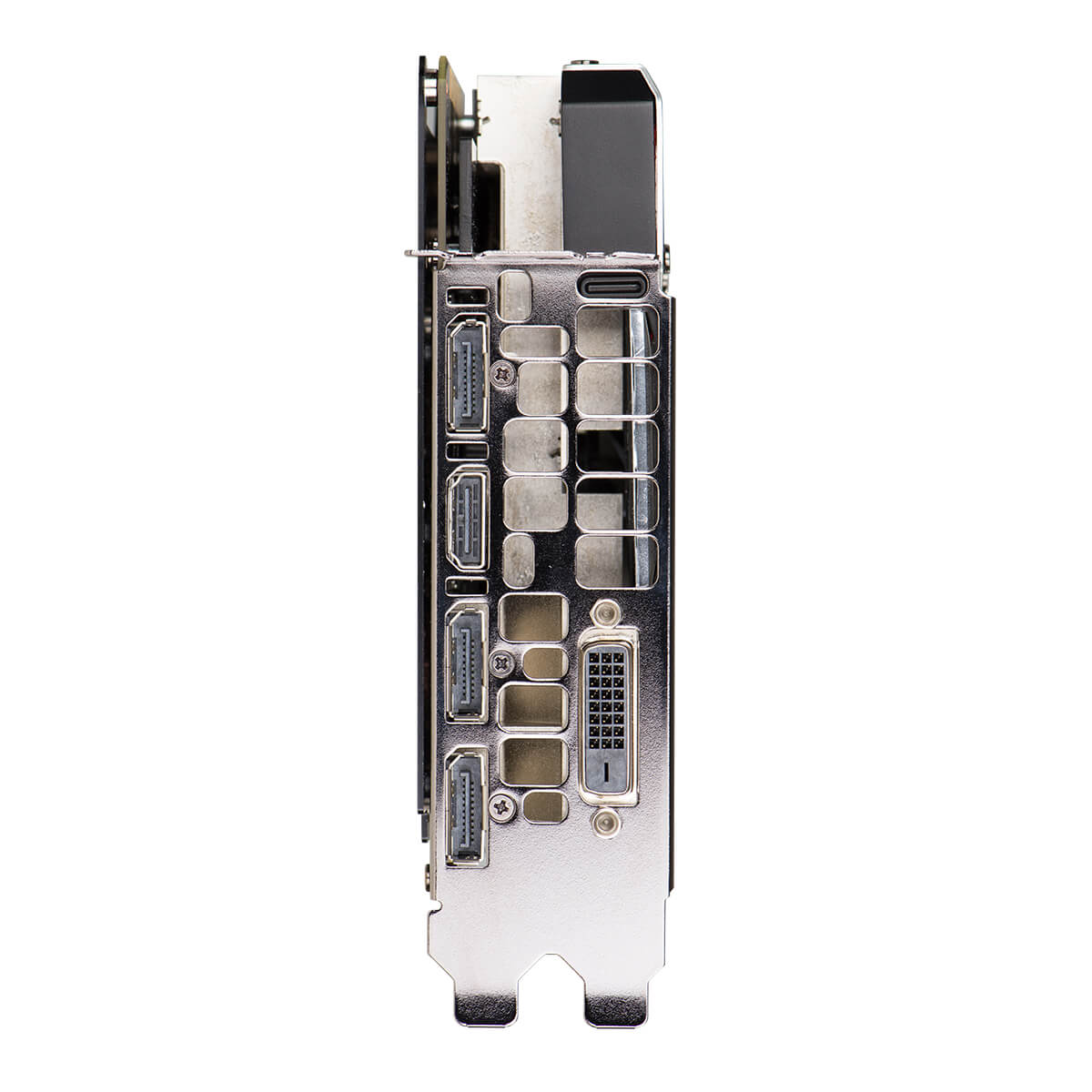

- HDMI 2.0b, DisplayPort 1.4 and Dual-Link DVI
- Max Digital Resolution - 7680x4320
- Microsoft DirectX 12 API
- NVIDIA® Ansel
- NVIDIA G-SYNC
- NVIDIA GameStream
- NVIDIA GPU Boost 3.0
- NVIDIA SLI w/ HB Bridge Support
- OpenGL 4.6 Support
- PCI Express 3.0
- Simultaneous Multi-Projection
- VR Ready
- Vulkan API
Core
- CUDA Cores: 2560
- Base Clock: 1721 MHz
- Boost Clock: 1860 MHz
- Bus: PCIe 3.0
- 2-way SLI Ready
Memory
- Memory Detail: 8192 MB GDDR5X
- Memory Bit Width: 256 Bit
- Memory Clock: 10000 MHz
- Memory Speed: 0.2 ns
- Memory Bandwidth: 320 GB/s
Key Features
- 10 Phase Power Design
- Adjustable RGB LED
- Built for EVGA Precision XOC
- EVGA Double BIOS
- HDMI 2.0b, DisplayPort 1.4 and Dual-Link DVI
- Hybrid "All-in-One" Watercooler
- Max Digital Resolution - 7680x4320
- Microsoft DirectX 12 API
- NVIDIA® Ansel
- NVIDIA G-SYNC
- NVIDIA GameStream
- NVIDIA GPU Boost 3.0
- NVIDIA SLI w/ HB Bridge Support
- OpenGL 4.6 Support
- PCI Express 3.0
- Simultaneous Multi-Projection
- VR Ready
- Vulkan API
Core
- CUDA Cores: 2560
- Base Clock: 1708 MHz
- Boost Clock: 1847 MHz
- Bus: PCIe 3.0
- 2-way SLI Ready
Memory
- Memory Detail: 8192 MB GDDR5X
- Memory Bit Width: 256 Bit
- Memory Clock: 10010 MHz
- Memory Speed: 0.2 ns
- Memory Bandwidth: 320 GB/s
Key Features
- Built for EVGA Precision XOC
- HDMI 2.0b, DisplayPort 1.4 and Dual-Link DVI
- Hybrid "All-in-One" Watercooler
- Max Digital Resolution - 7680x4320
- Microsoft DirectX 12 API
- NVIDIA® Ansel
- NVIDIA G-SYNC
- NVIDIA GameStream
- NVIDIA GPU Boost 3.0
- NVIDIA SLI w/ HB Bridge Support
- OpenGL 4.6 Support
- PCI Express 3.0
- Simultaneous Multi-Projection
- VR Ready
- Vulkan API
Core
- CUDA Cores: 2560
- Base Clock: 1721 MHz
- Boost Clock: 1860 MHz
- Bus: PCIe 3.0
- 2-way SLI Ready
Memory
- Memory Detail: 8192 MB GDDR5X
- Memory Bit Width: 256 Bit
- Memory Clock: 10000 MHz
- Memory Speed: 0.2 ns
- Memory Bandwidth: 320 GB/s
Key Features
- 14 Phase Power Design
- Adjustable RGB LED
- Built for EVGA Precision XOC
- EVGA ACX 3.0 Cooling
- EVGA Double BIOS
- HDMI 2.0b, DisplayPort 1.4 and Dual-Link DVI
- Max Digital Resolution - 7680x4320
- Microsoft DirectX 12 API
- NVIDIA® Ansel
- NVIDIA G-SYNC
- NVIDIA GameStream
- NVIDIA GPU Boost 3.0
- NVIDIA SLI w/ HB Bridge Support
- OpenGL 4.6 Support
- PCI Express 3.0
- Simultaneous Multi-Projection
- VR Ready
- Vulkan API
Core
- CUDA Cores: 2560
- Base Clock: 1721 MHz
- Boost Clock: 1860 MHz
- Bus: PCIe 3.0
- 2-way SLI Ready
Memory
- Memory Detail: 8192 MB GDDR5X
- Memory Bit Width: 256 Bit
- Memory Clock: 10000 MHz
- Memory Speed: 0.18 ns
- Memory Bandwidth: 320 GB/s
Key Features
- 10 Phase Power Design
- Adjustable RGB LED
- Built for EVGA Precision XOC
- EVGA ACX 3.0 Cooling
- EVGA Double BIOS
- HDMI 2.0b, DisplayPort 1.4 and Dual-Link DVI
- Max Digital Resolution - 7680x4320
- Microsoft DirectX 12 API
- NVIDIA® Ansel
- NVIDIA G-SYNC
- NVIDIA GameStream
- NVIDIA GPU Boost 3.0
- NVIDIA SLI w/ HB Bridge Support
- OpenGL 4.6 Support
- PCI Express 3.0
- Simultaneous Multi-Projection
- VR Ready
- Vulkan API
Core
- CUDA Cores: 2560
- Base Clock: 1708 MHz
- Boost Clock: 1847 MHz
- Bus: PCIe 3.0
- 2-way SLI Ready
Memory
- Memory Detail: 8192 MB GDDR5X
- Memory Bit Width: 256 Bit
- Memory Clock: 10010 MHz
- Memory Speed: 0.2 ns
- Memory Bandwidth: 320 GB/s
Key Features
- Built for EVGA Precision XOC
- EVGA ACX 3.0 Cooling
- HDMI 2.0b, DisplayPort 1.4 and Dual-Link DVI
- Max Digital Resolution - 7680x4320
- Microsoft DirectX 12 API
- NVIDIA® Ansel
- NVIDIA G-SYNC
- NVIDIA GameStream
- NVIDIA GPU Boost 3.0
- NVIDIA SLI w/ HB Bridge Support
- OpenGL 4.6 Support
- PCI Express 3.0
- Simultaneous Multi-Projection
- VR Ready
- Vulkan API
Core
- CUDA Cores: 2560
- Base Clock: 1607 MHz
- Boost Clock: 1733 MHz
- Bus: PCIe 3.0
- 2-way SLI Ready
Memory
- Memory Detail: 8192 MB GDDR5X
- Memory Bit Width: 256 Bit
- Memory Clock: 10010 MHz
- Memory Speed: 0.2 ns
- Memory Bandwidth: 320 GB/s
Key Features
- Built for EVGA Precision XOC
- HDMI 2.0b, DisplayPort 1.4 and Dual-Link DVI
- Max Digital Resolution - 7680x4320
- Microsoft DirectX 12 API
- NVIDIA® Ansel
- NVIDIA G-SYNC
- NVIDIA GameStream
- NVIDIA GPU Boost 3.0
- NVIDIA SLI w/ HB Bridge Support
- OpenGL 4.6 Support
- PCI Express 3.0
- Simultaneous Multi-Projection
- VR Ready
- Vulkan API
Core
- CUDA Cores: 2560
- Base Clock: 1607 MHz
- Boost Clock: 1733 MHz
- Bus: PCIe 3.0
- 2-way SLI Ready
Memory
- Memory Detail: 8192 MB GDDR5X
- Memory Bit Width: 256 Bit
- Memory Clock: 10010 MHz
- Memory Speed: 0.2 ns
- Memory Bandwidth: 320 GB/s
Key Features
- Built for EVGA Precision XOC
- HDMI 2.0b, DisplayPort 1.4 and Dual-Link DVI
- Max Digital Resolution - 7680x4320
- Microsoft DirectX 12 API
- NVIDIA® Ansel
- NVIDIA G-SYNC
- NVIDIA GameStream
- NVIDIA GPU Boost 3.0
- NVIDIA SLI w/ HB Bridge Support
- OpenGL 4.6 Support
- PCI Express 3.0
- Simultaneous Multi-Projection
- VR Ready
- Vulkan API
EVGA GeForce GTX 1080 Comparison Chart
| EVGA GRAPHICS CARD | PART NO. | BASE / BOOST CLOCK |
LED | BIOS | COOLER | POWER TYPE |
PERFORMANCE | BACKPLATE |
|---|---|---|---|---|---|---|---|---|

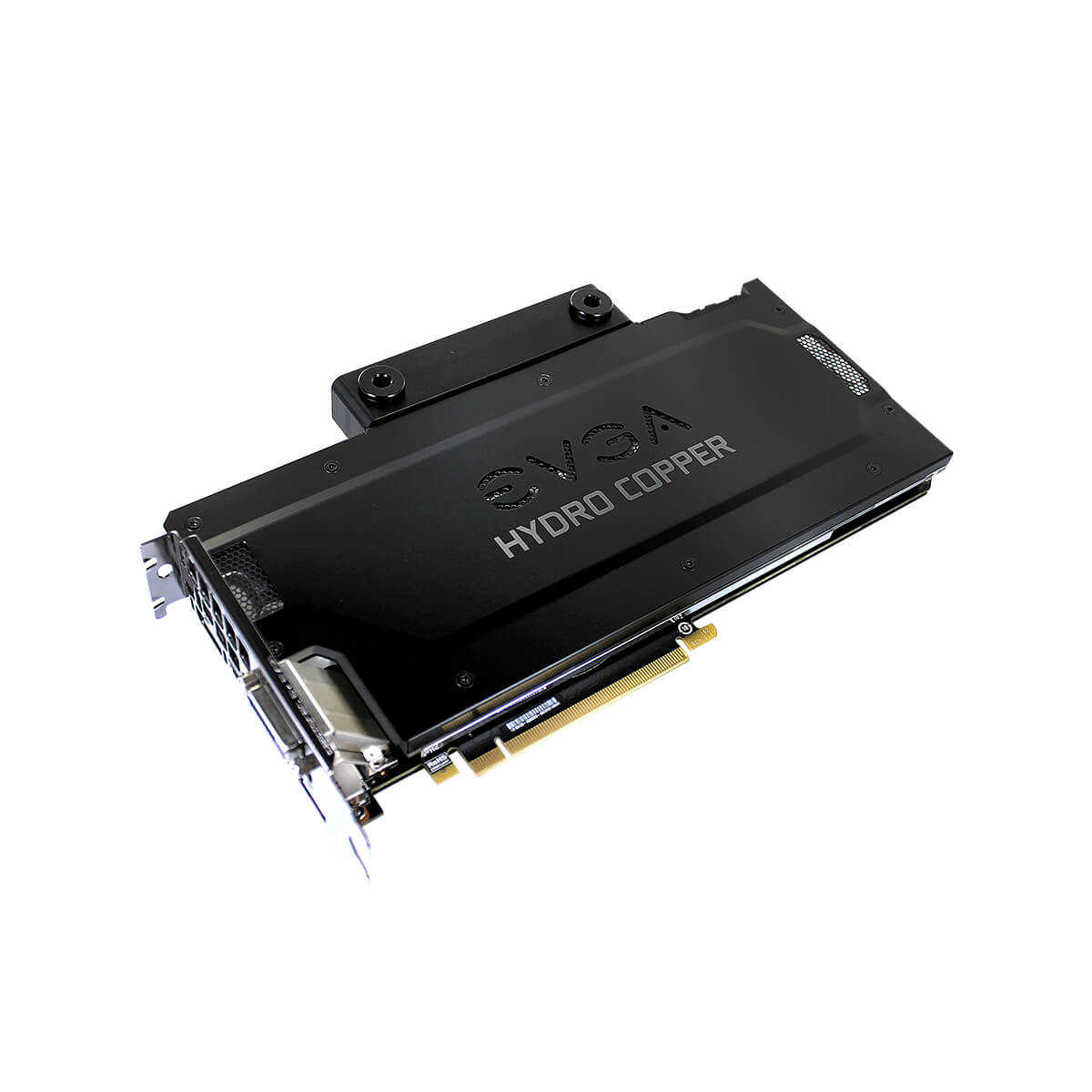

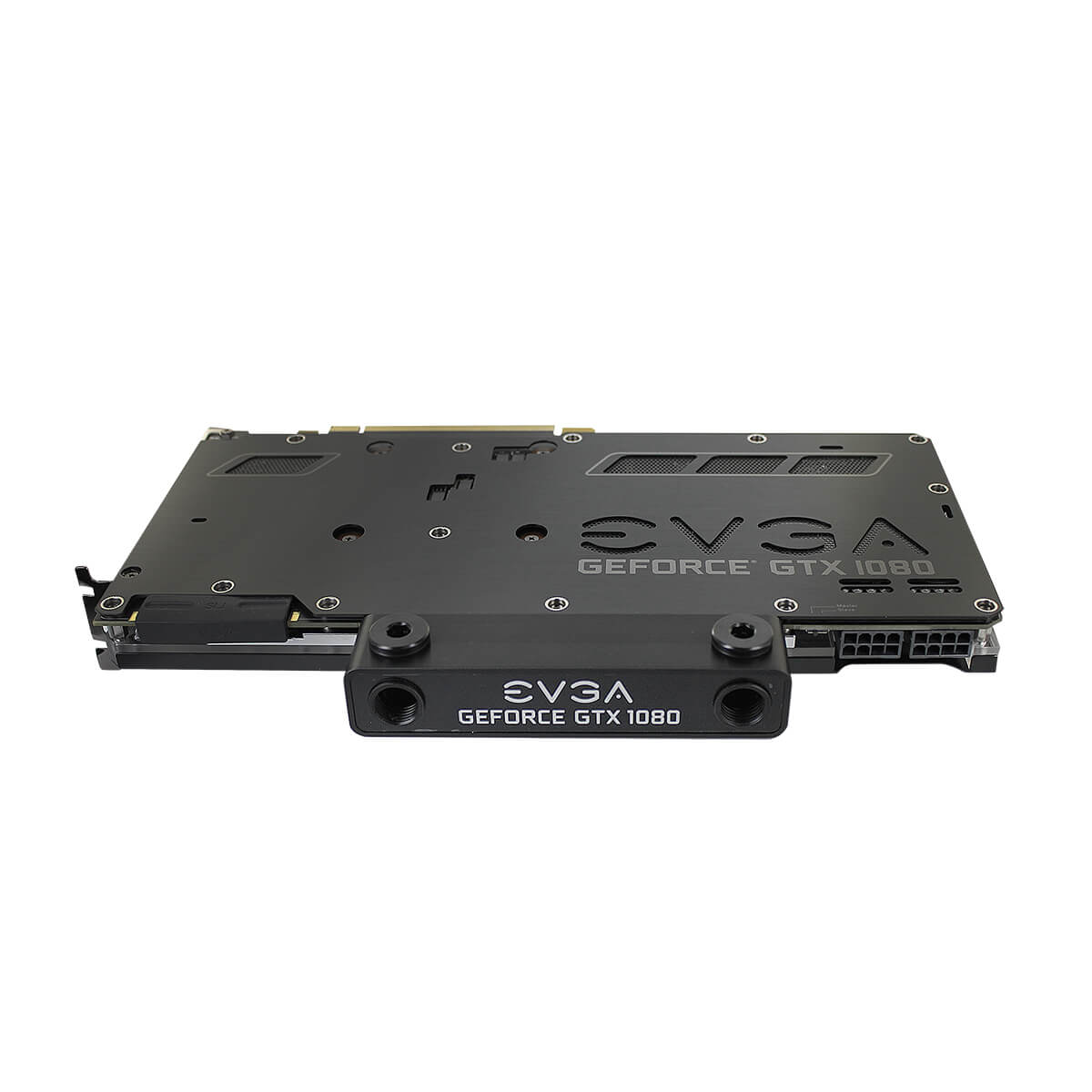

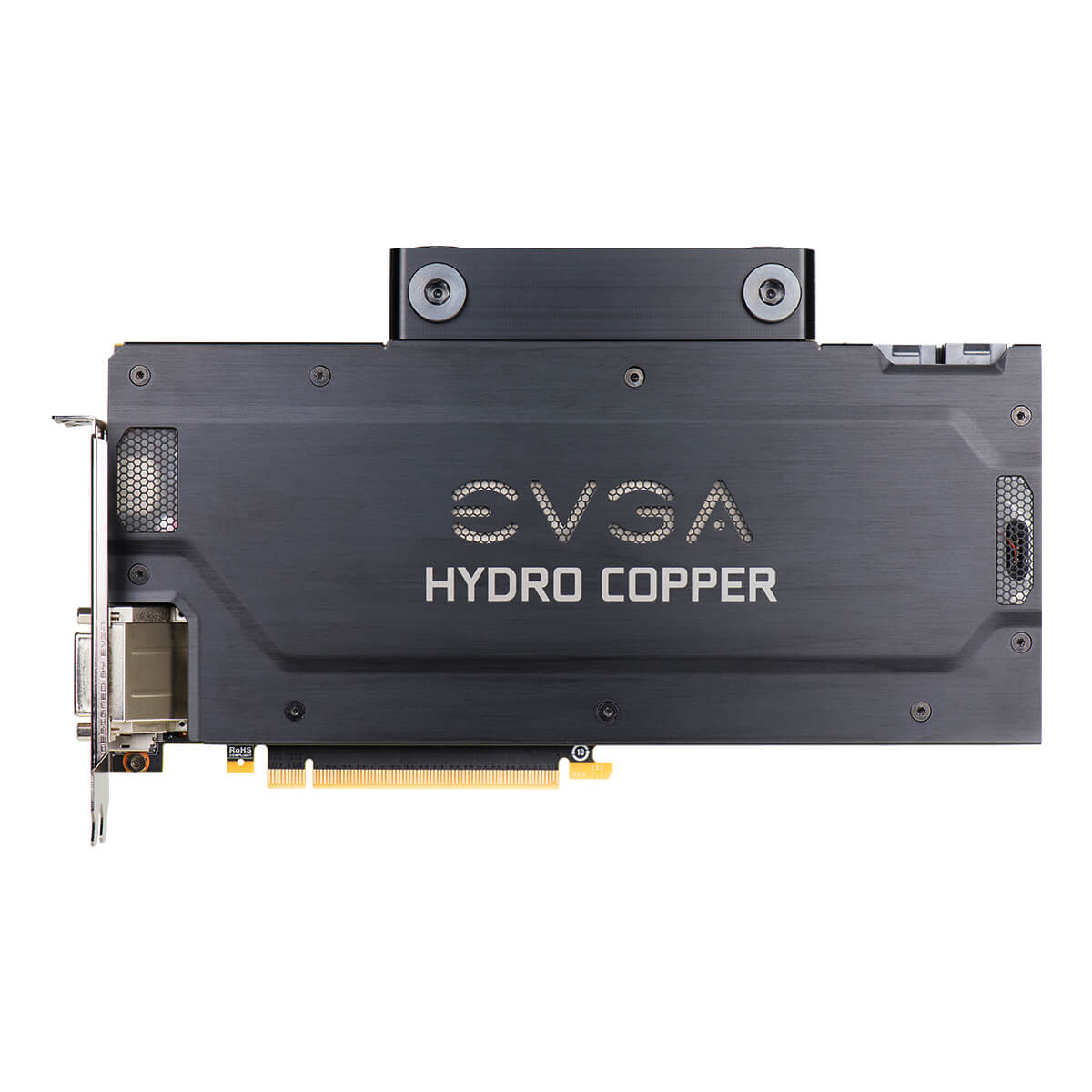

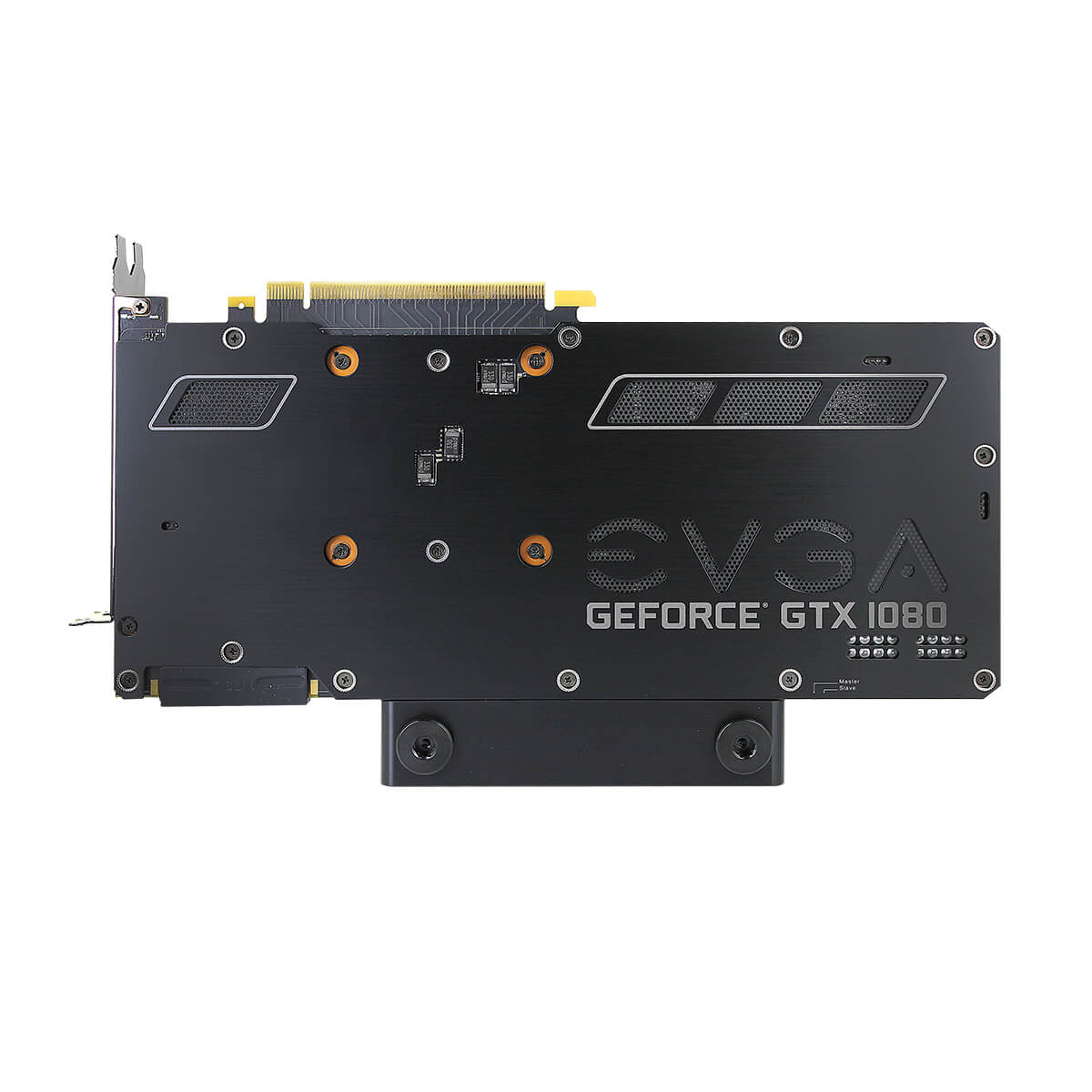

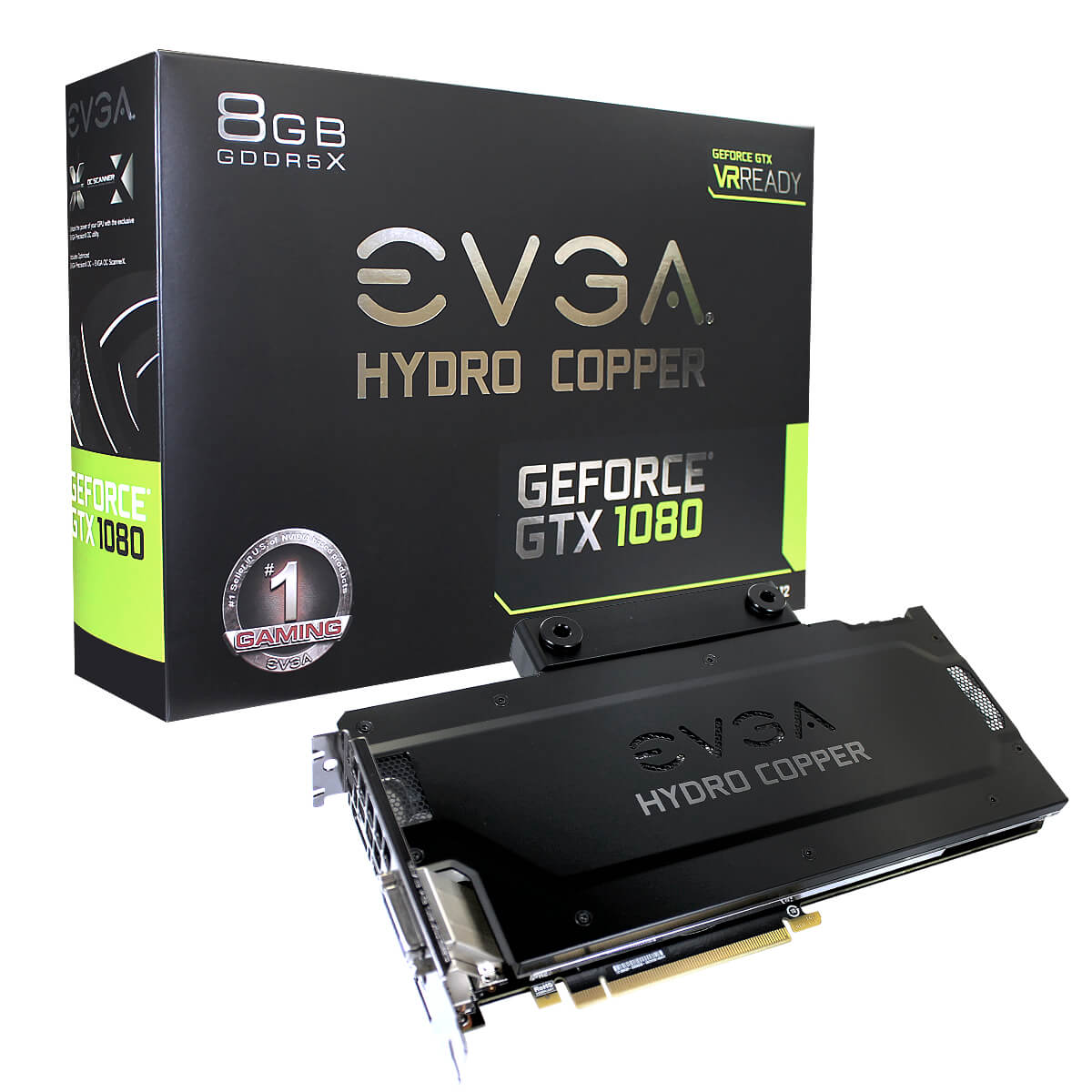

| EVGA GeForce GTX 1080 Hydro Copper | 08G-P4-6299-KR | 1721/1860 | RGB | 2 | Waterblock | 10 + 2 | Best | Yes |

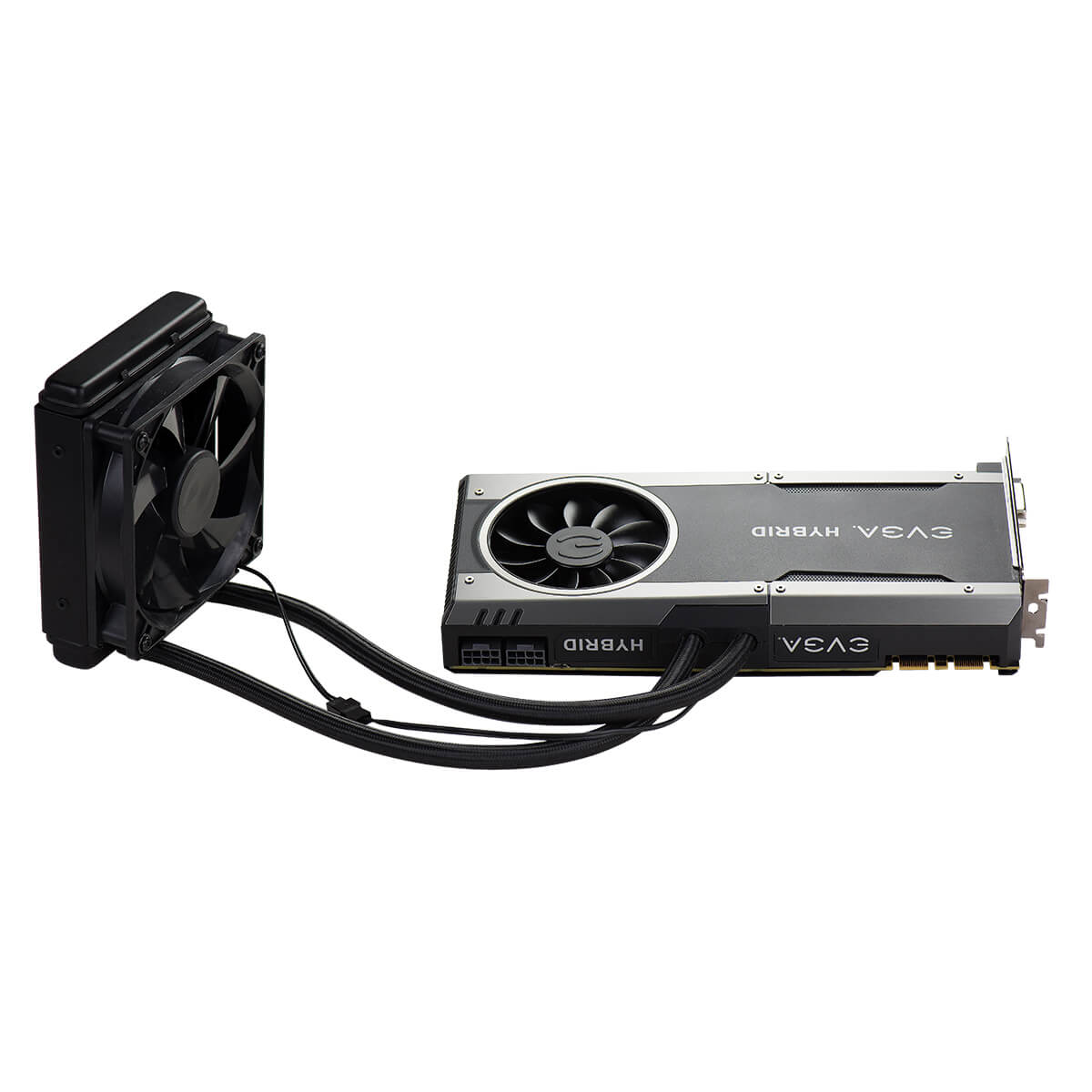

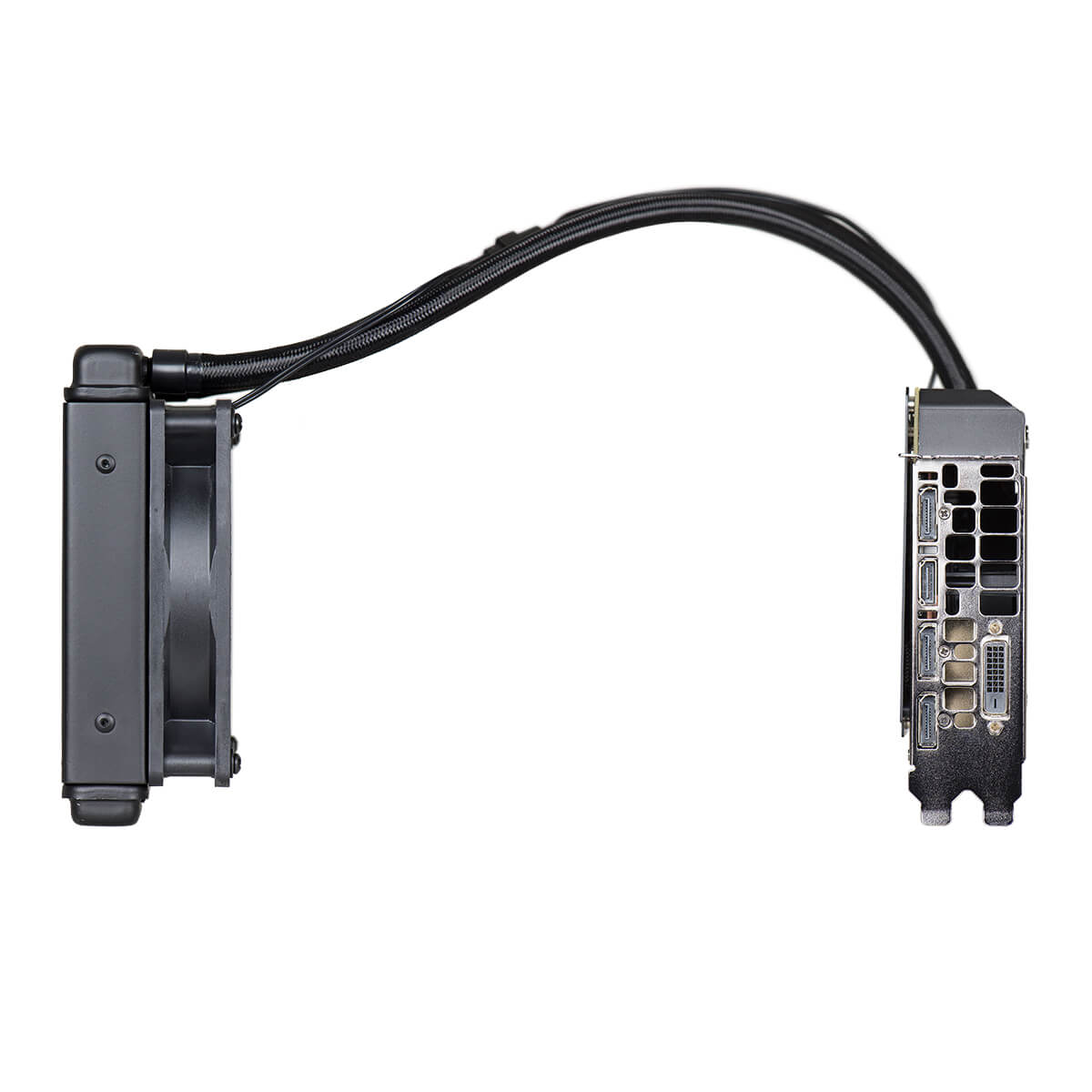

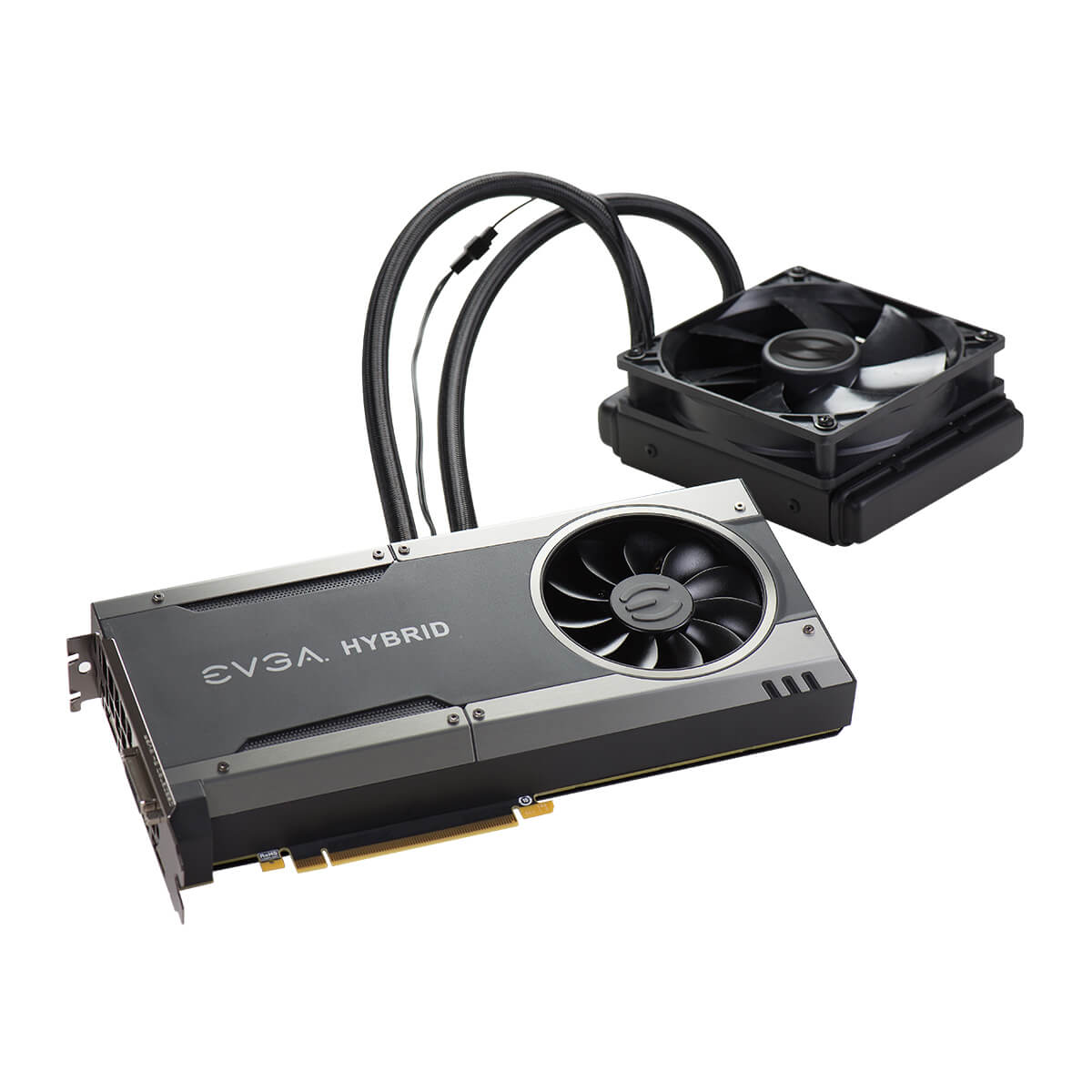

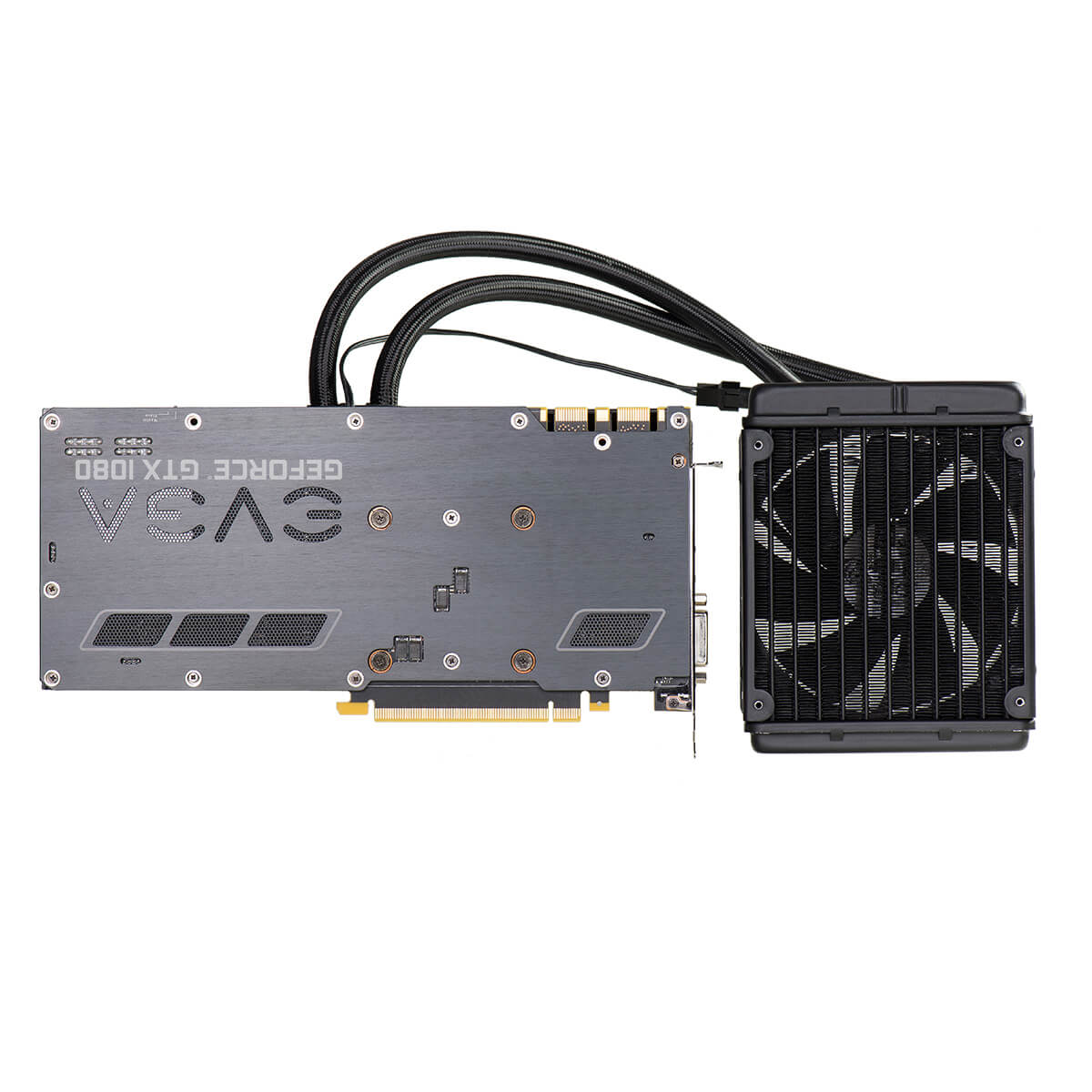

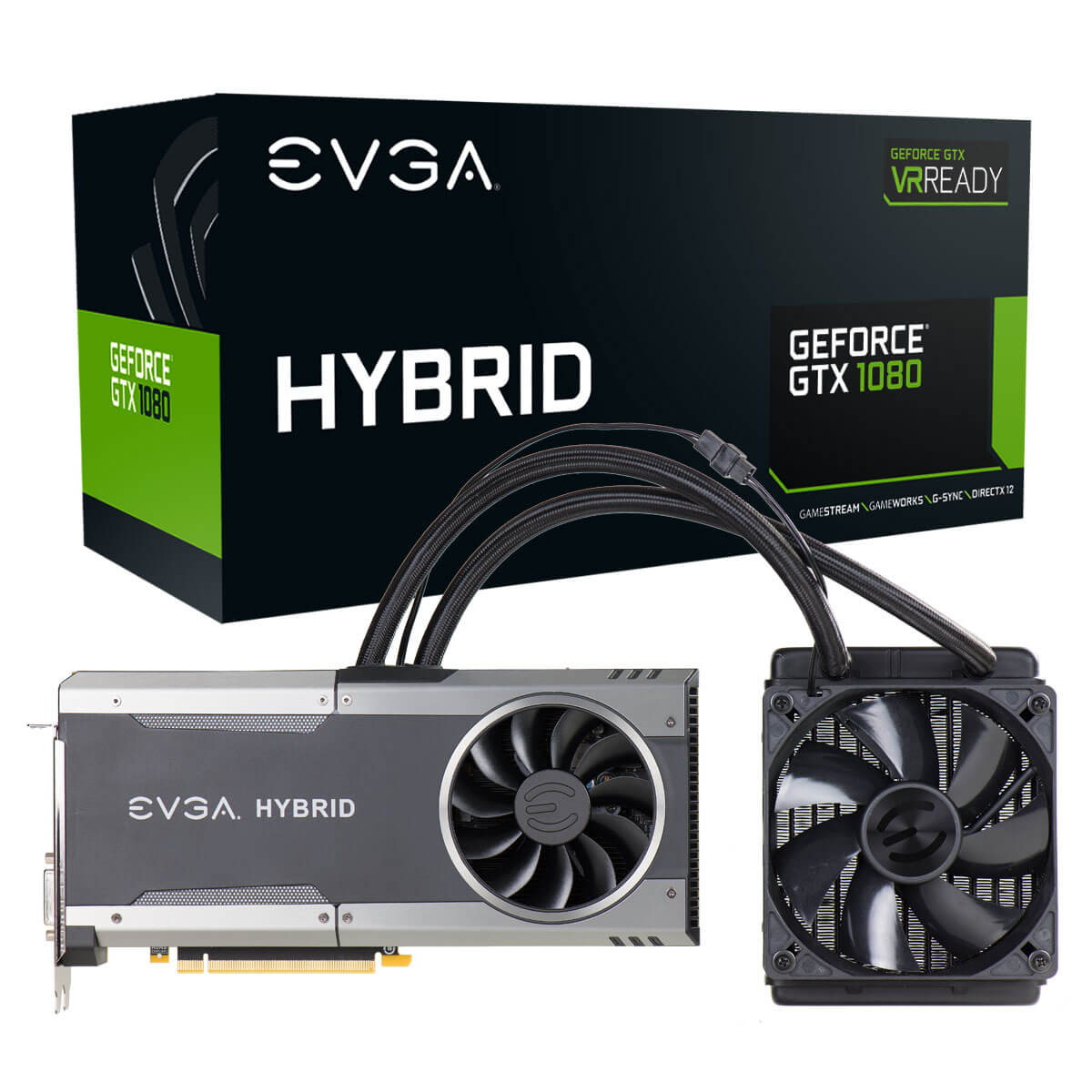

| EVGA GeForce GTX 1080 FTW Hybrid | 08G-P4-6288-KR | 1721/1860 | RGB | 2 | Hybrid | 10 + 2 | Great | Yes |

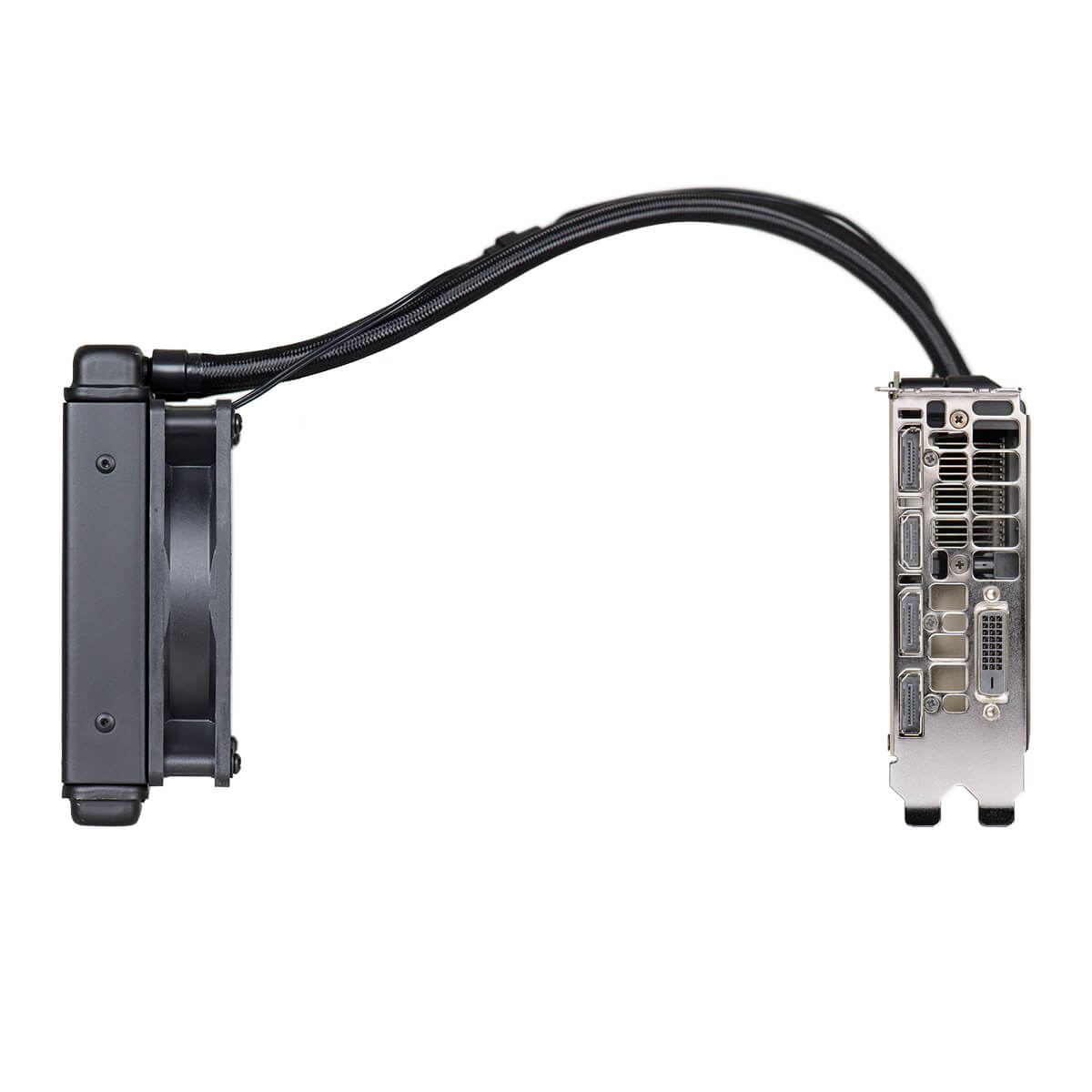

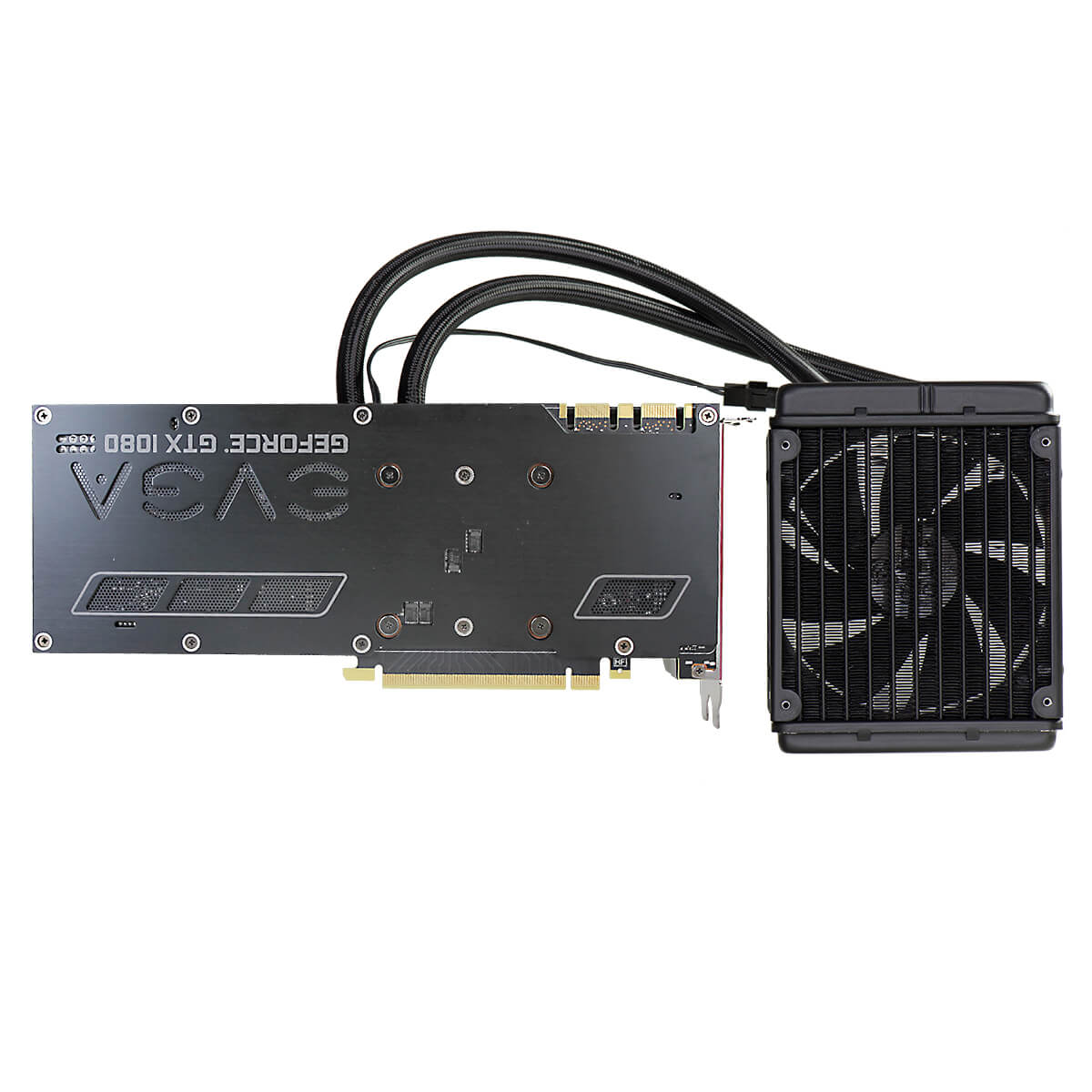

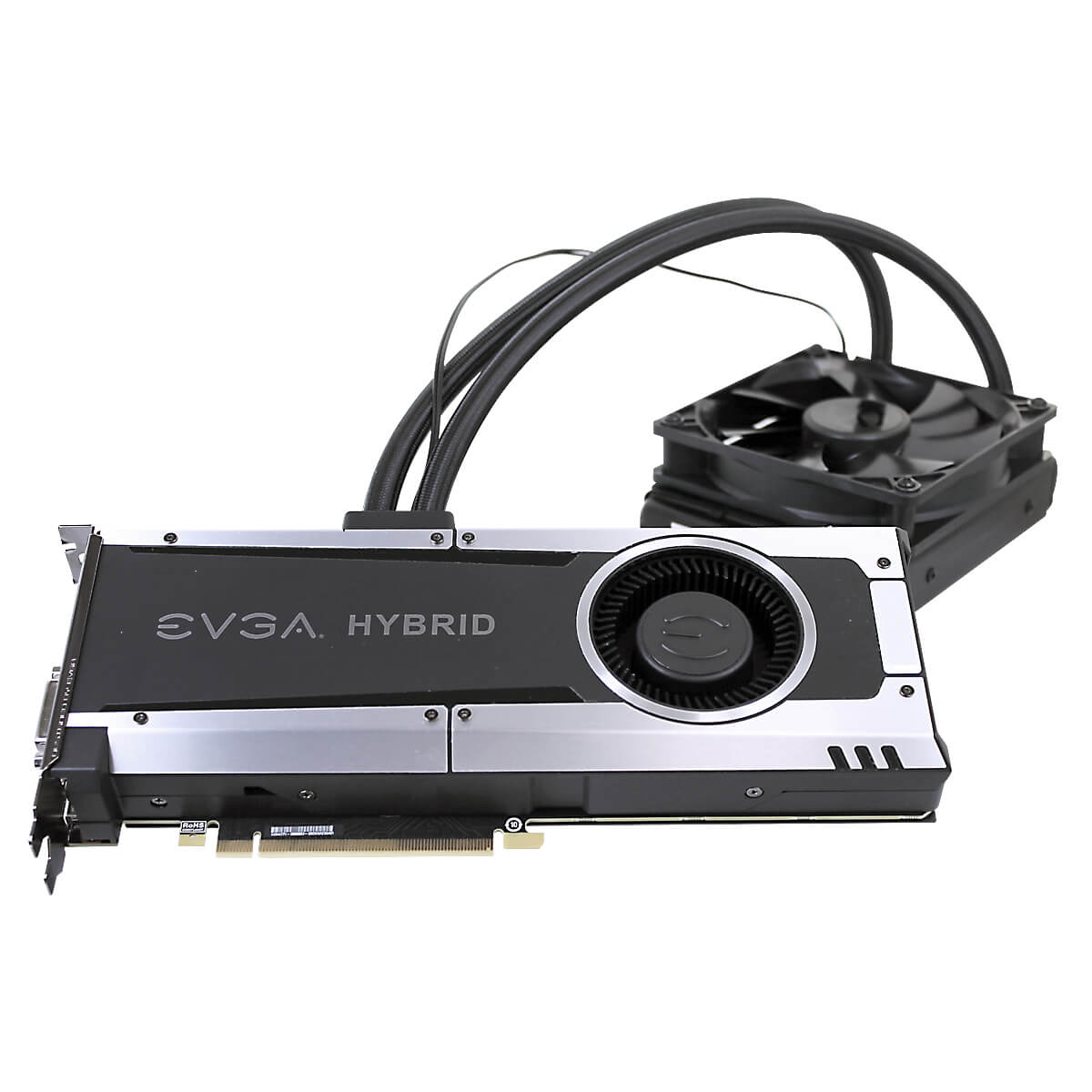

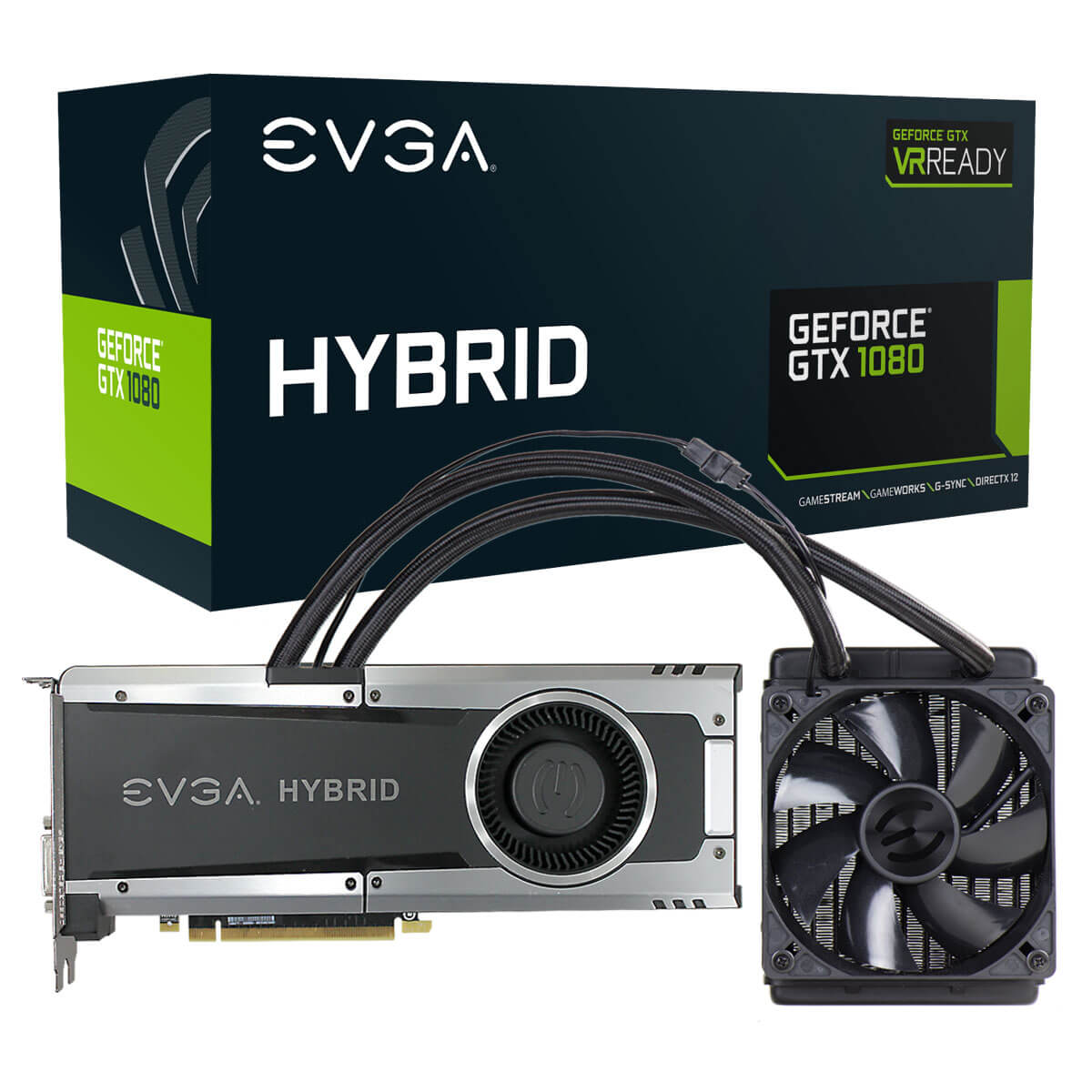

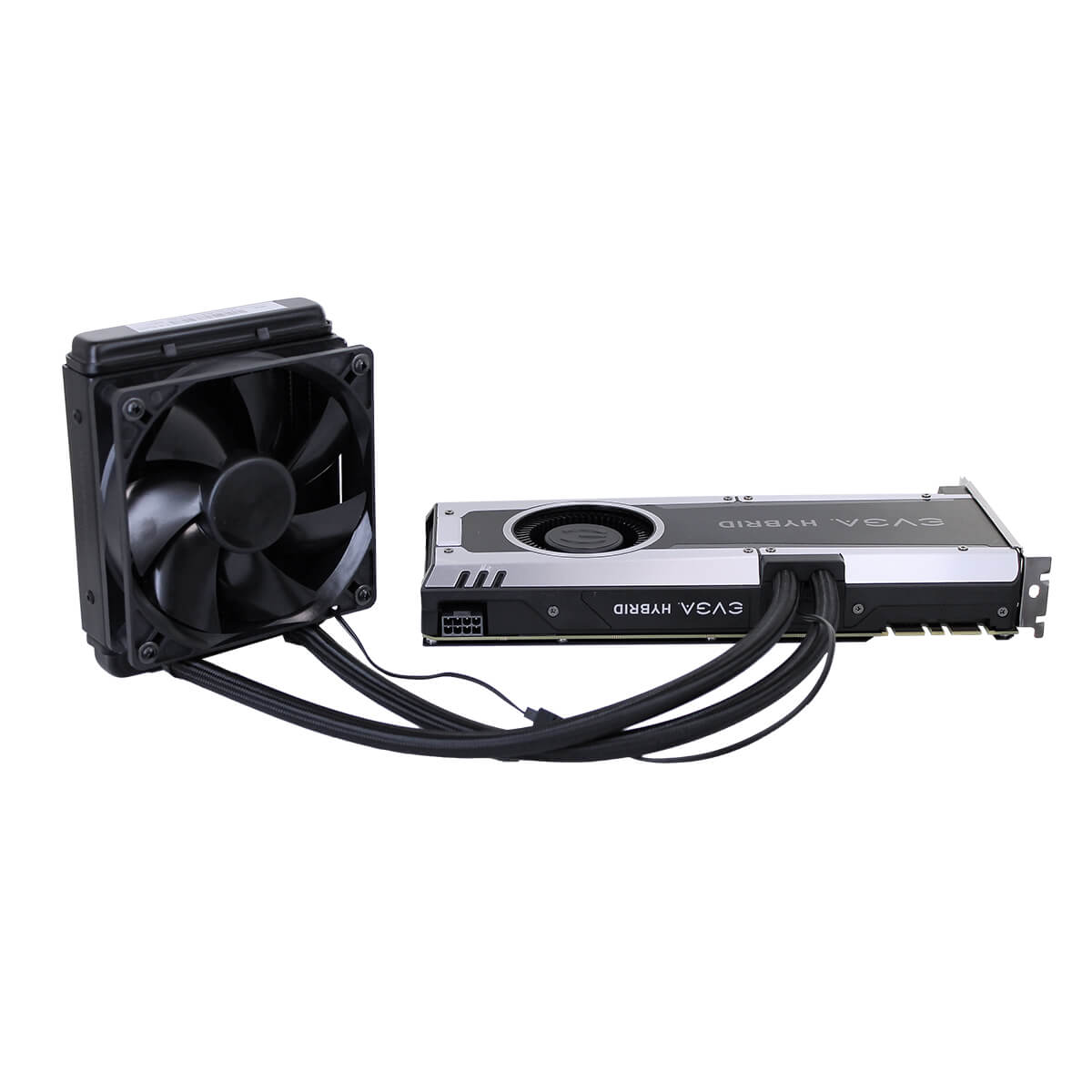

| EVGA GeForce GTX 1080 Hybrid | 08G-P4-6188-KR | 1708/1847 | YES (WHITE) | 2 | Hybrid | 5 + 1 | Great | Yes |

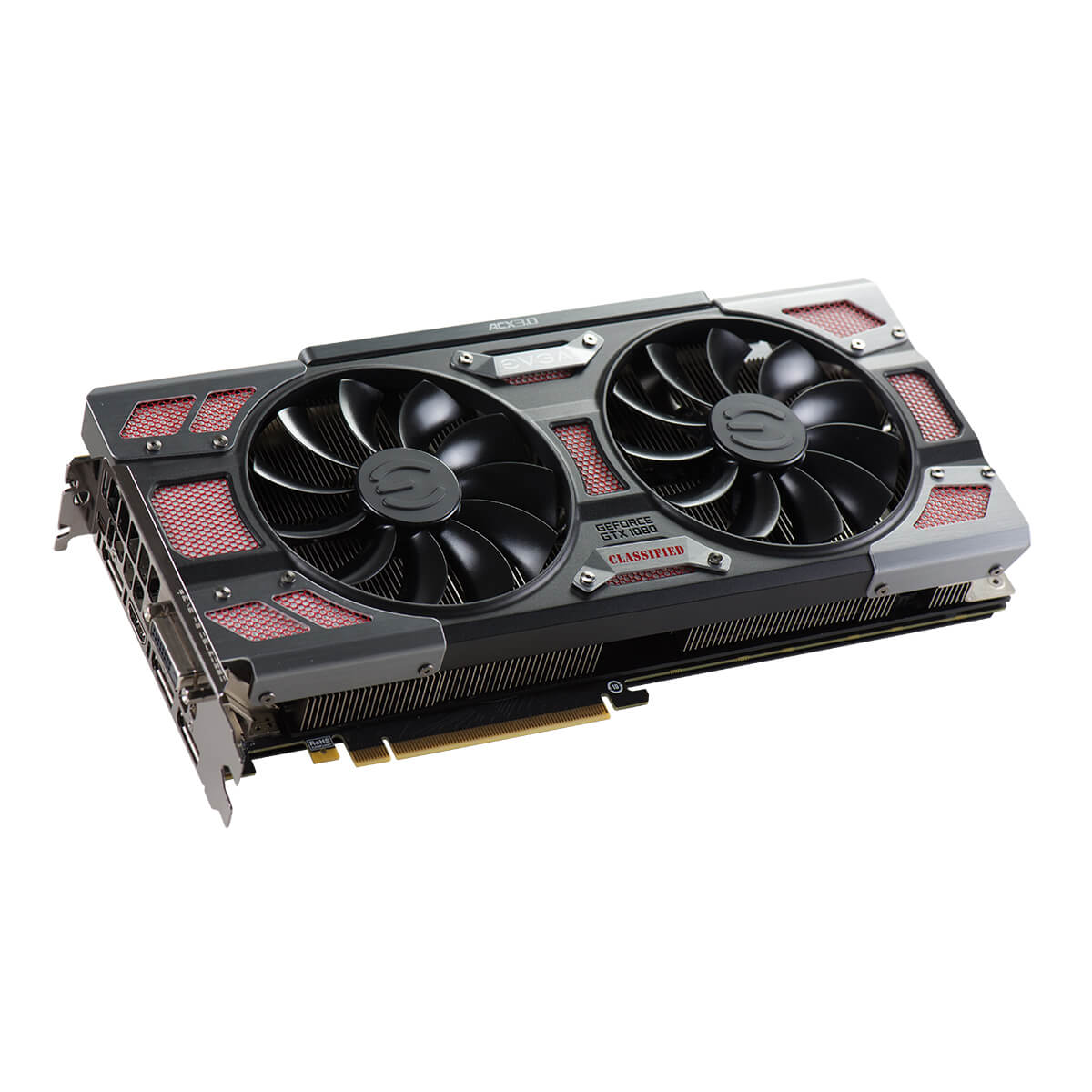

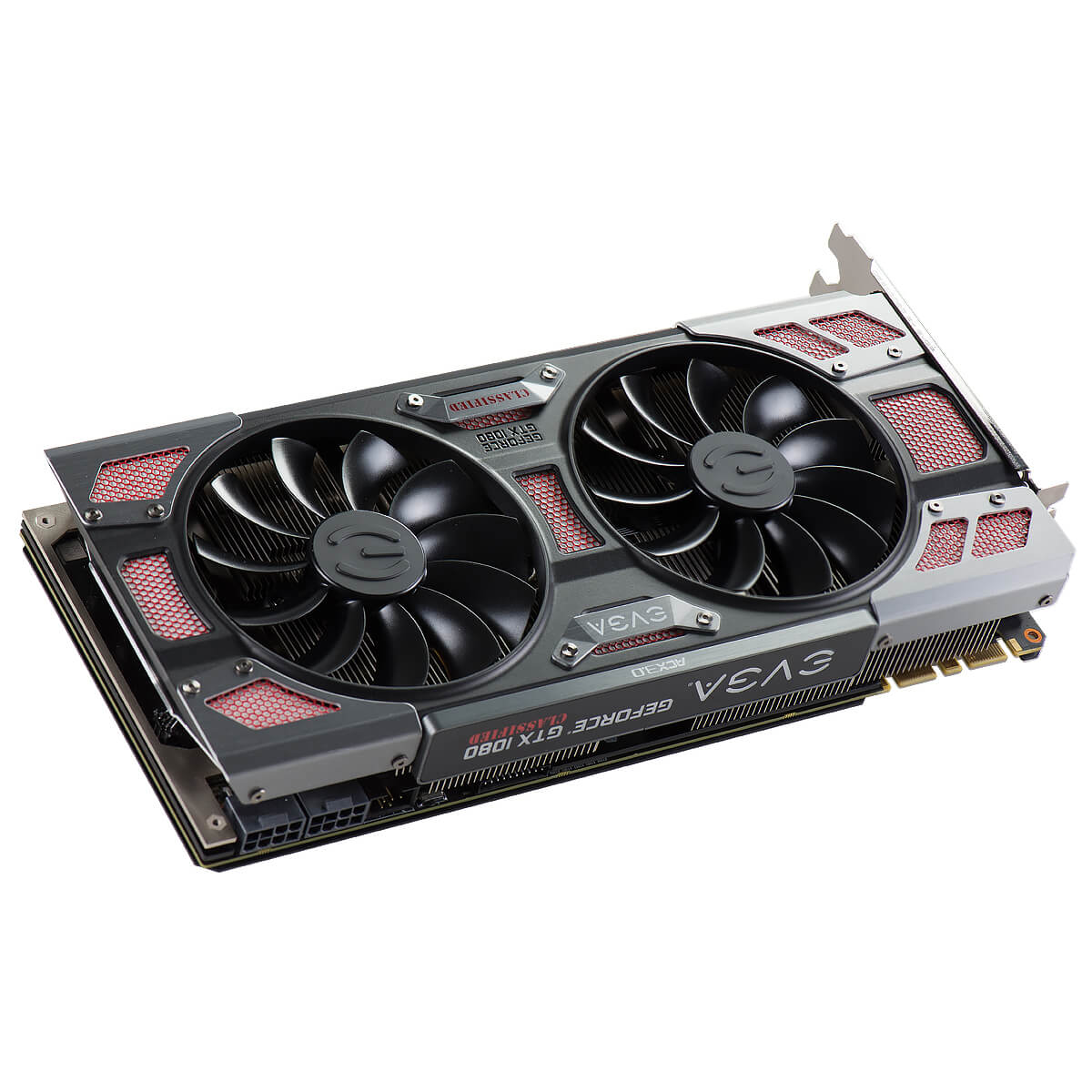

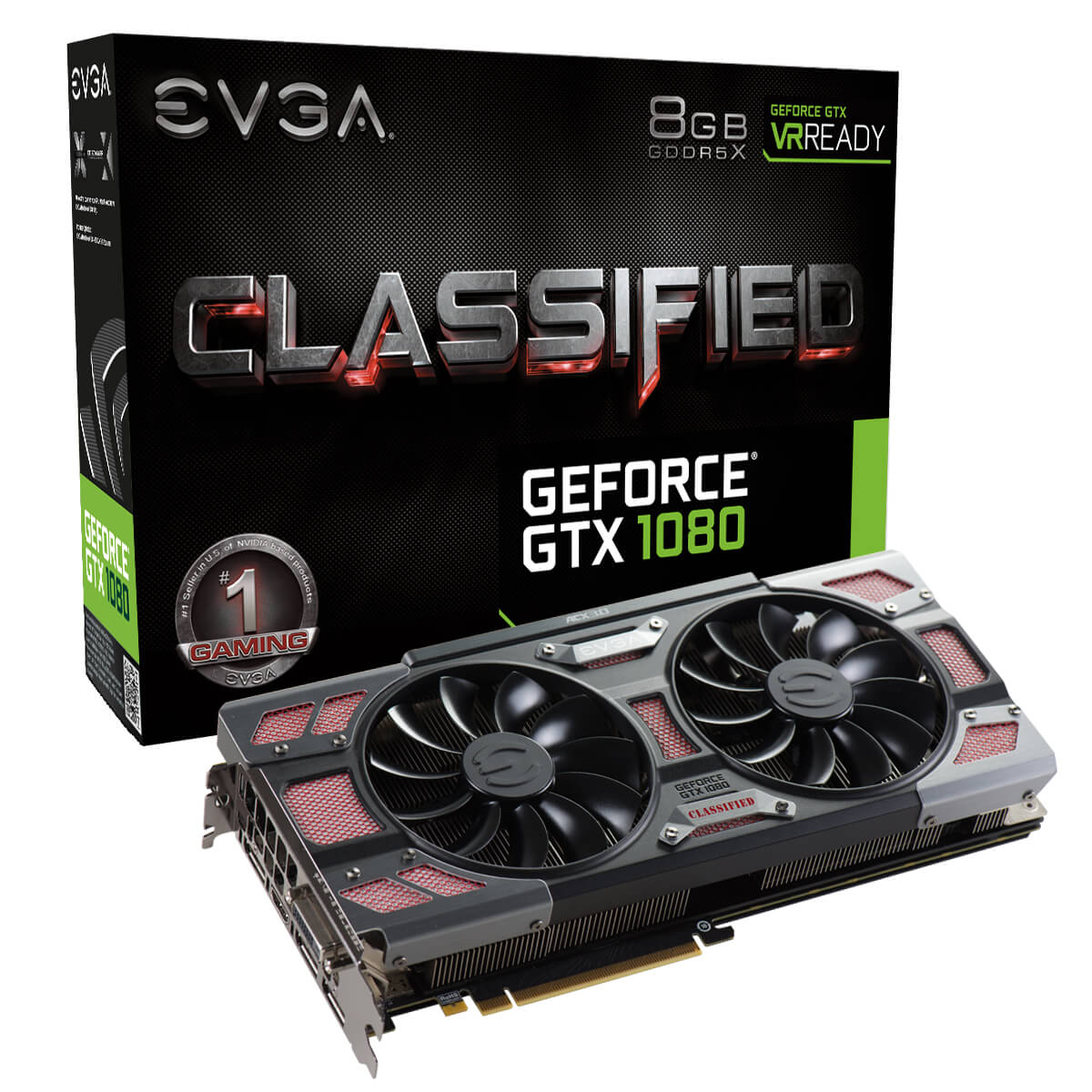

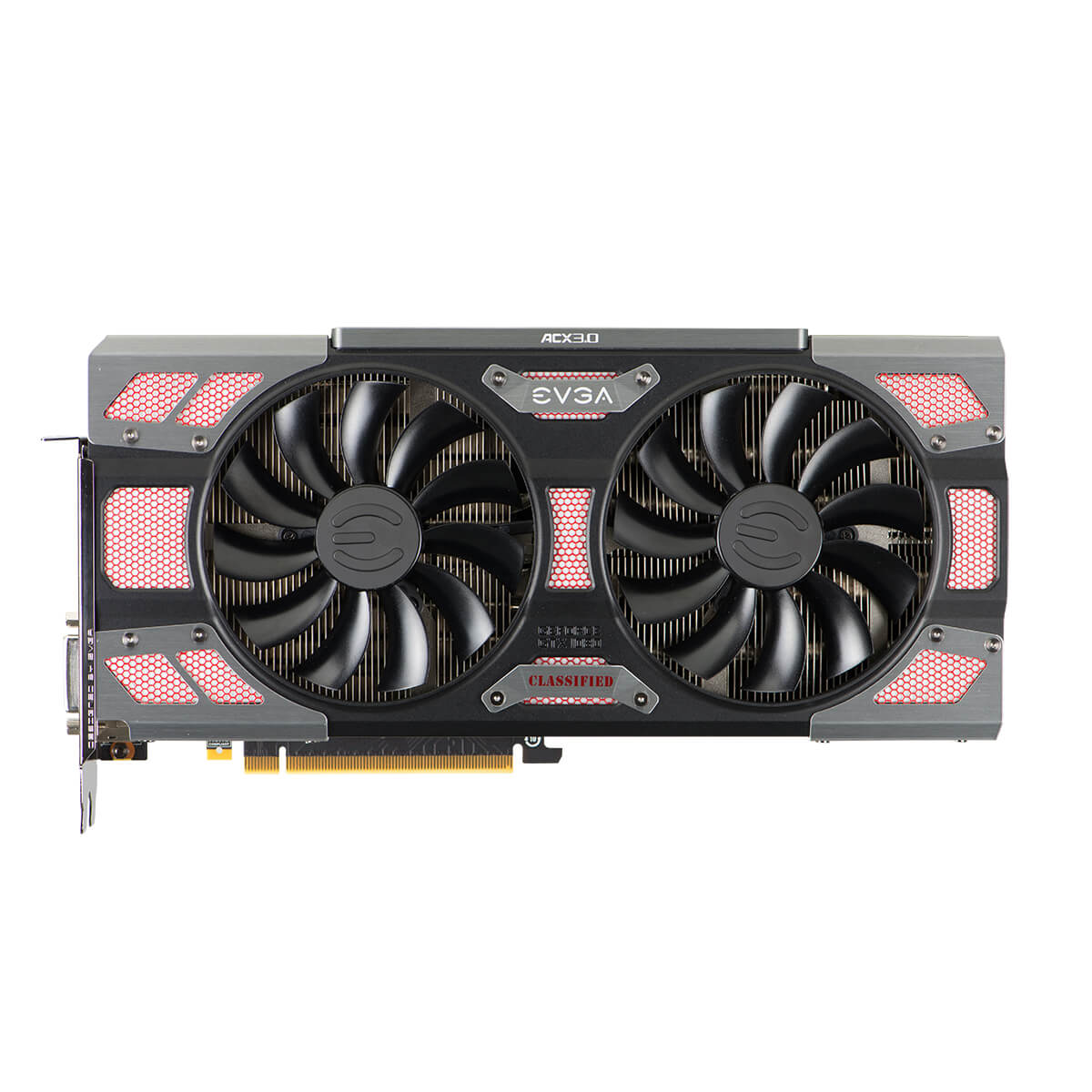

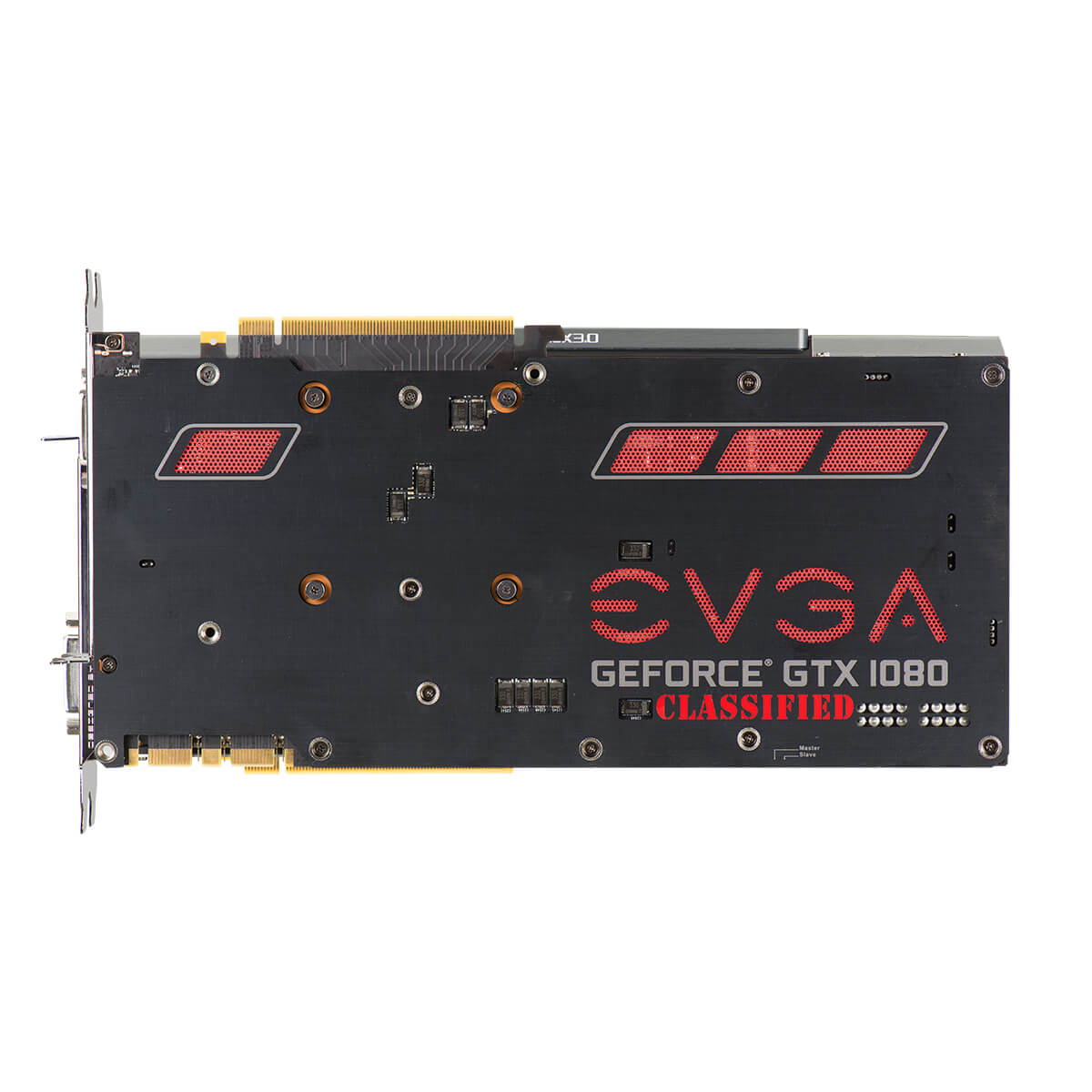

| EVGA GeForce GTX 1080 Classified ACX 3.0 | 08G-P4-6386-KR | 1721/1860 | RGB | 2 | ACX 3.0 | 14 + 3 | Great | Yes |

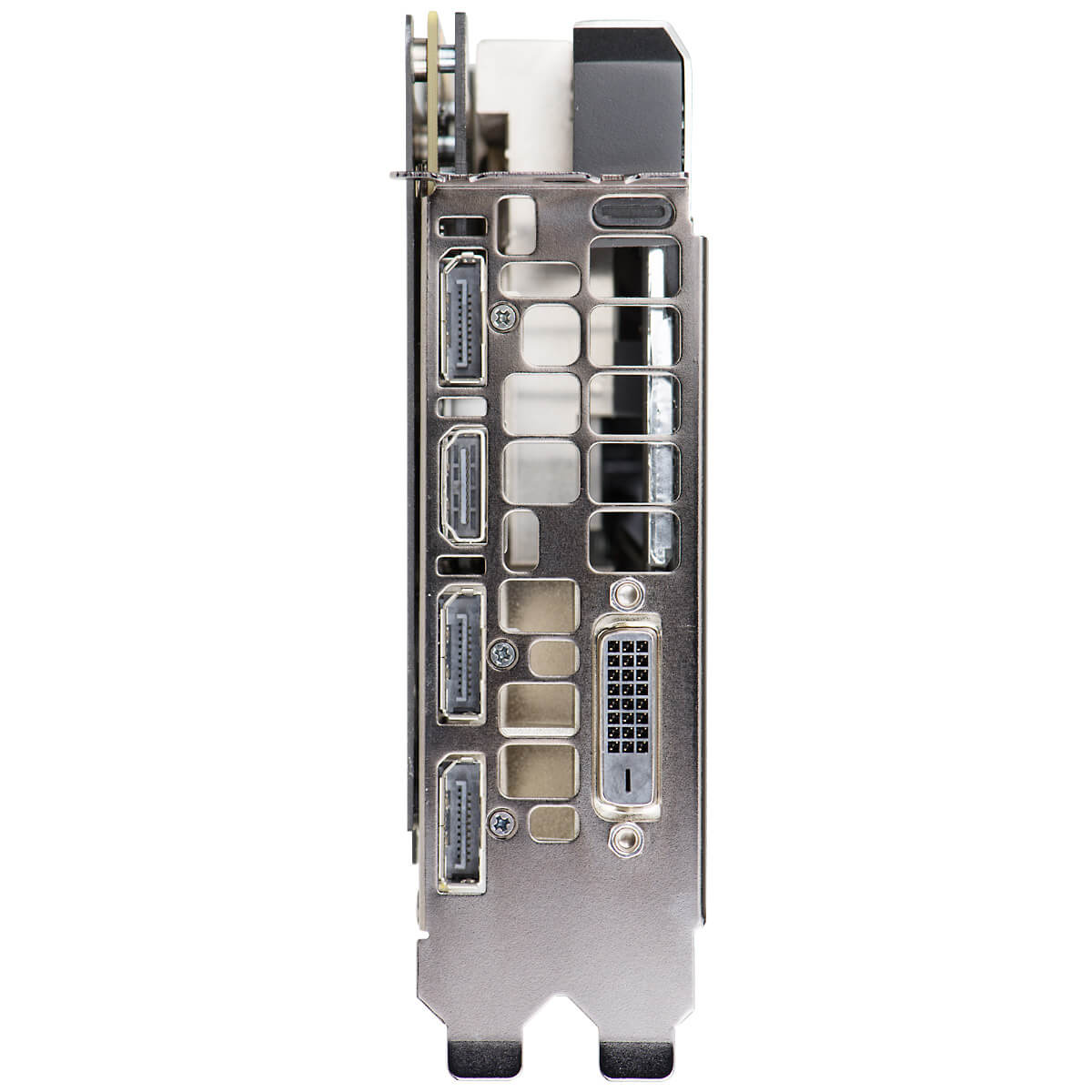

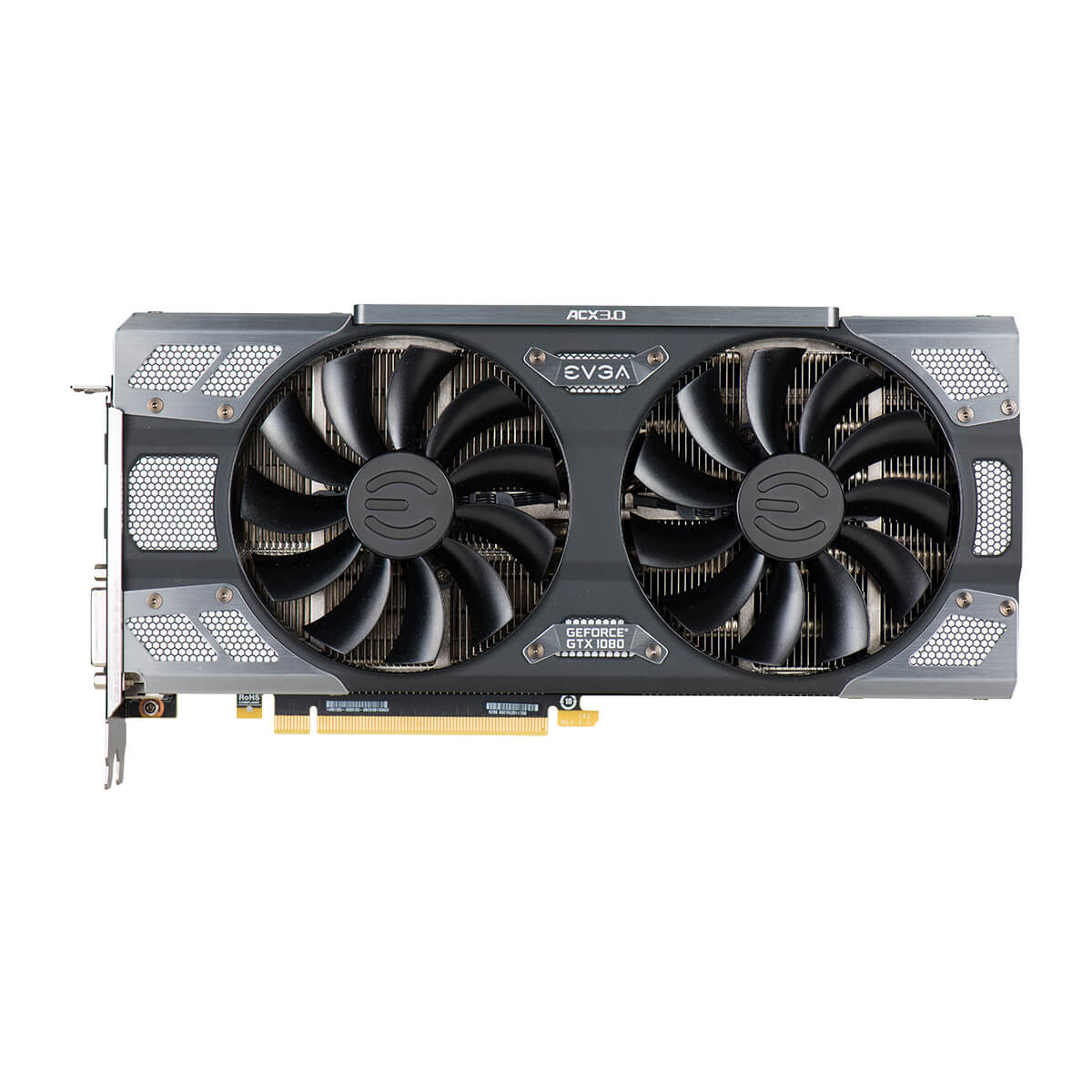

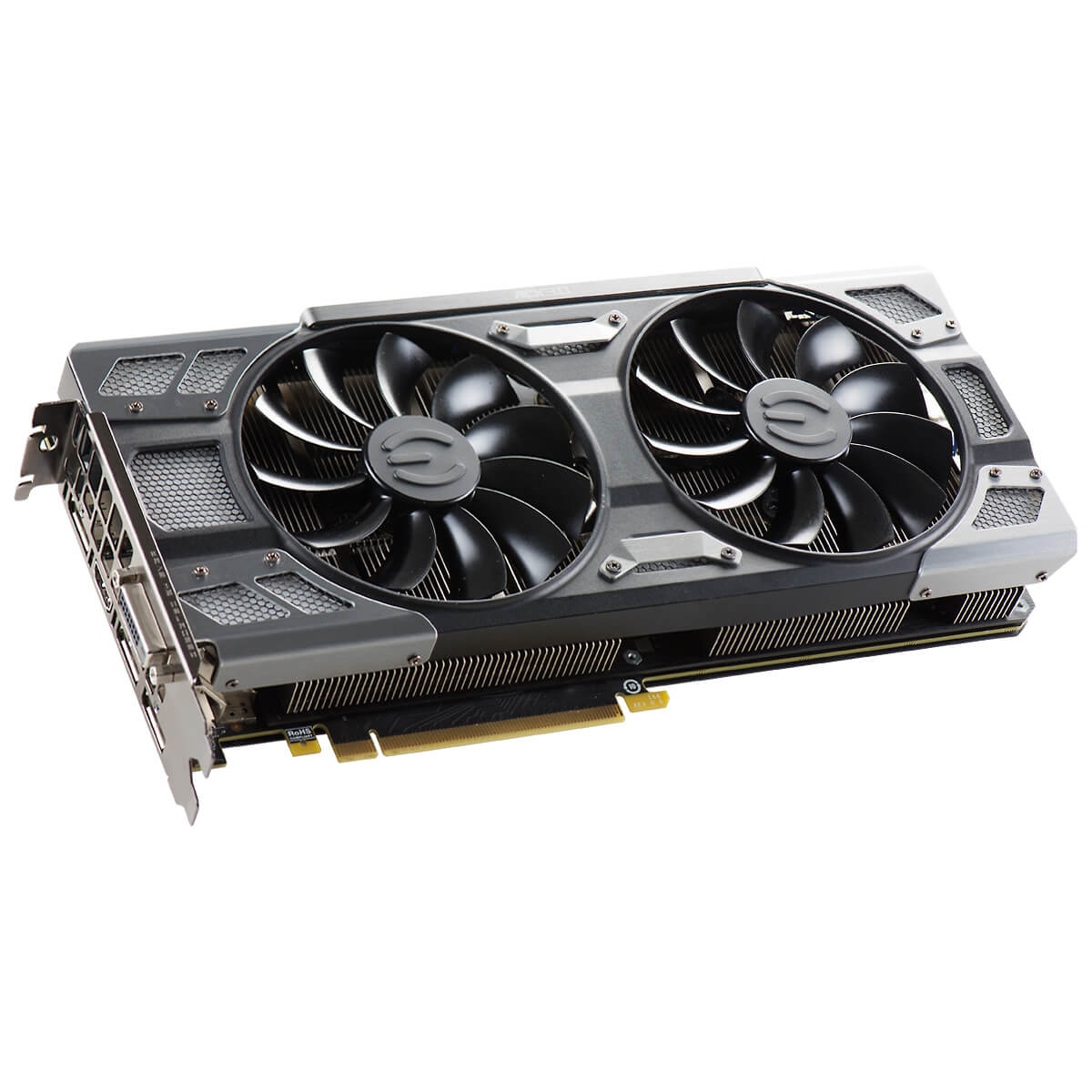

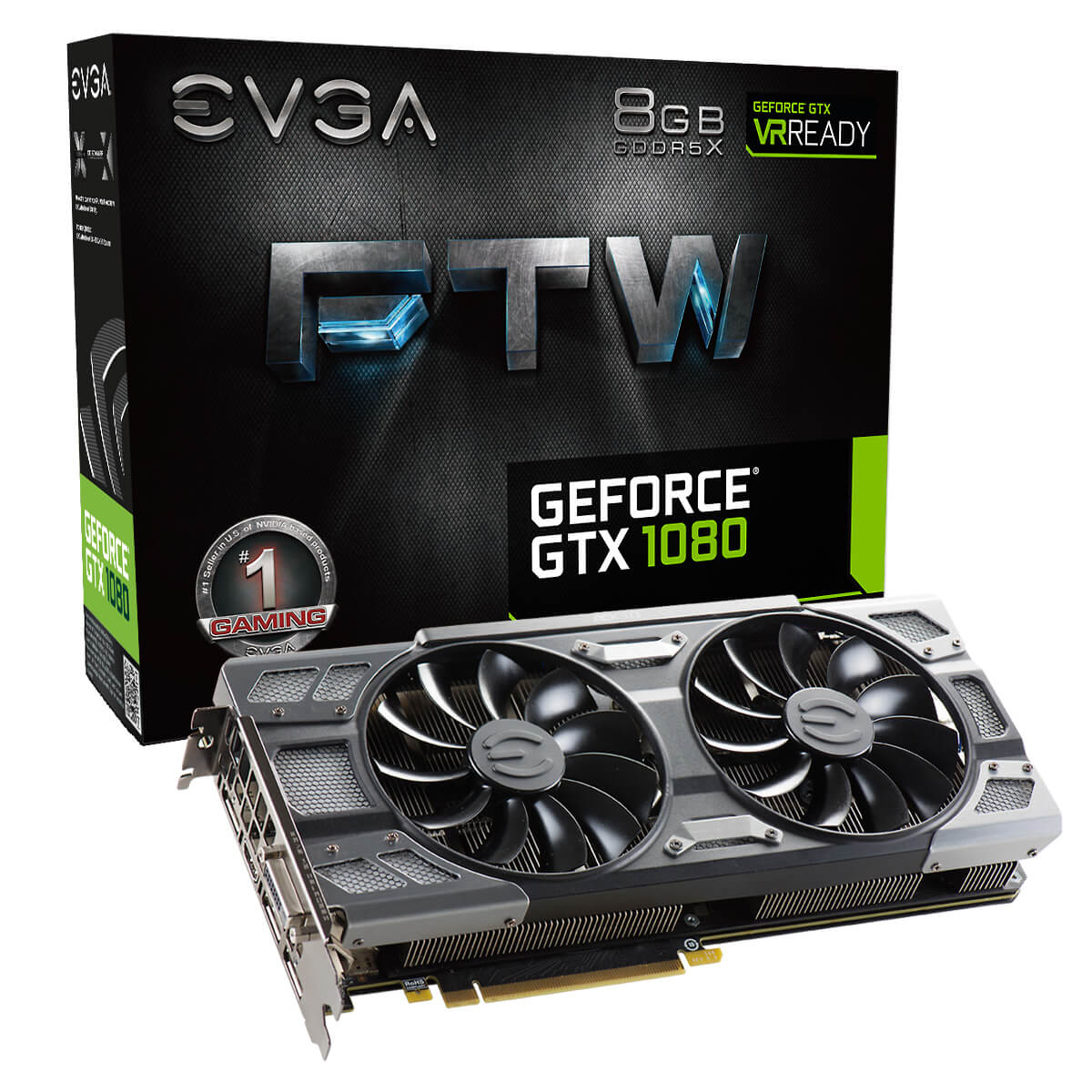

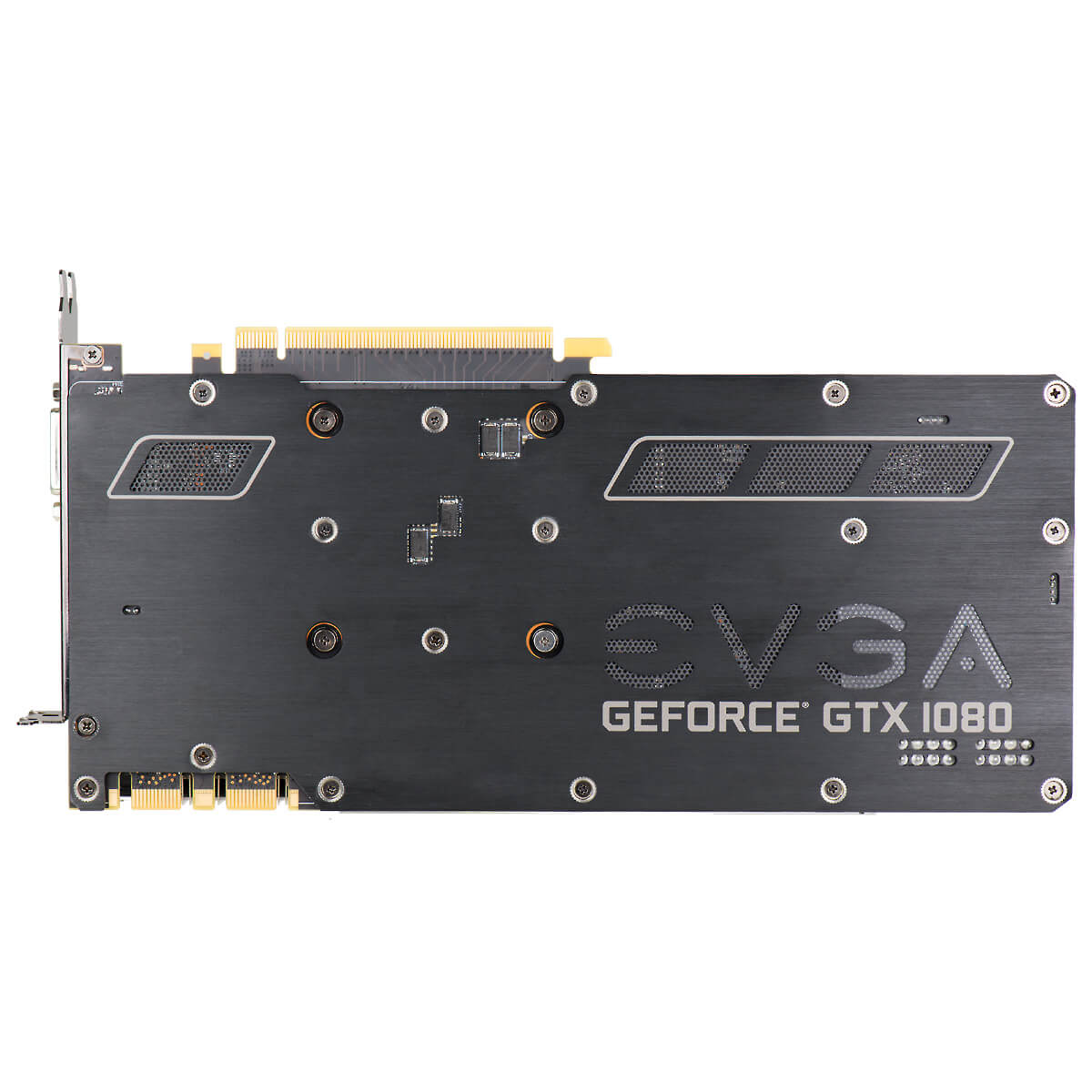

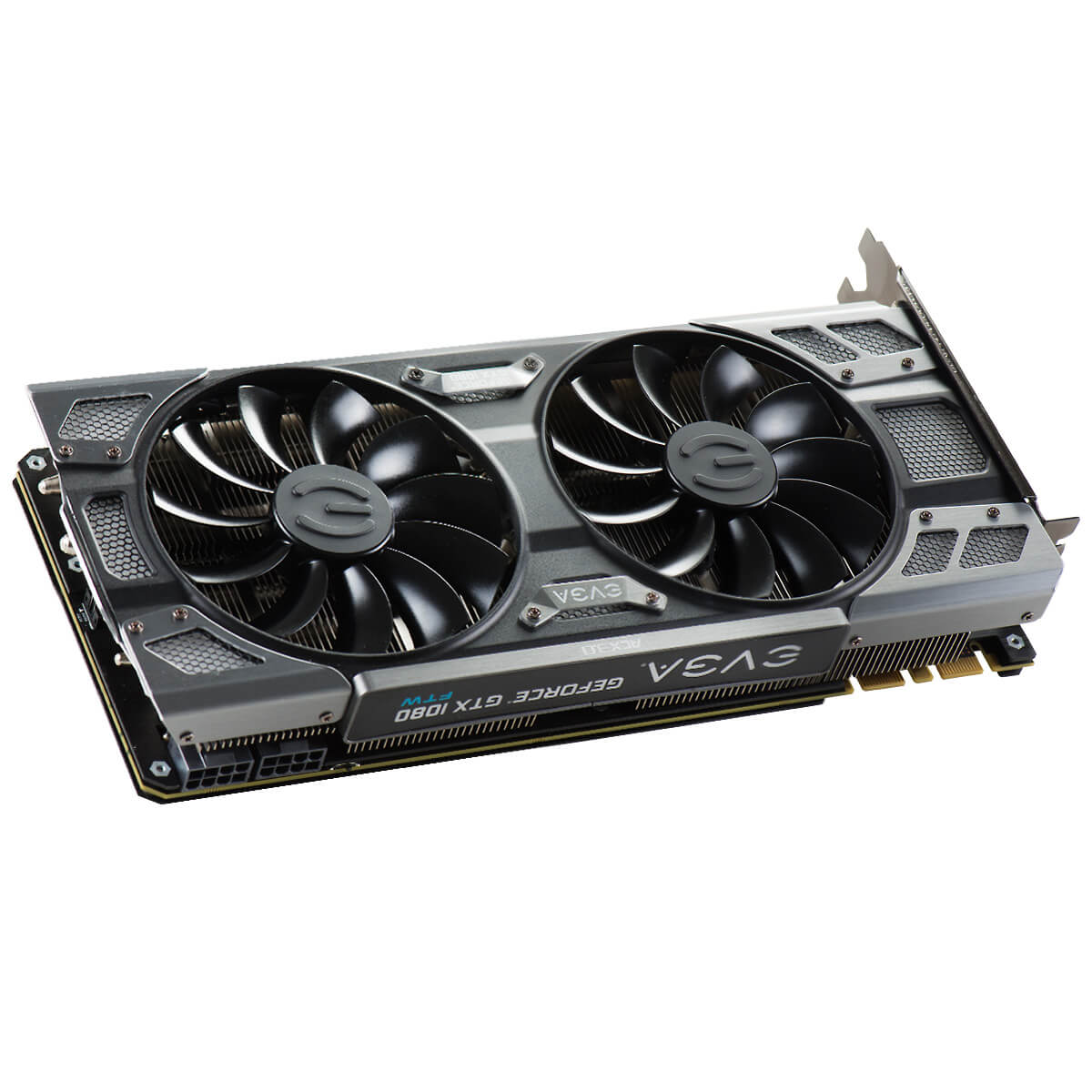

| EVGA GeForce GTX 1080 FTW ACX 3.0 | 08G-P4-6286-KR | 1721/1860 | RGB | 2 | ACX 3.0 | 10 + 2 | Great | Yes |

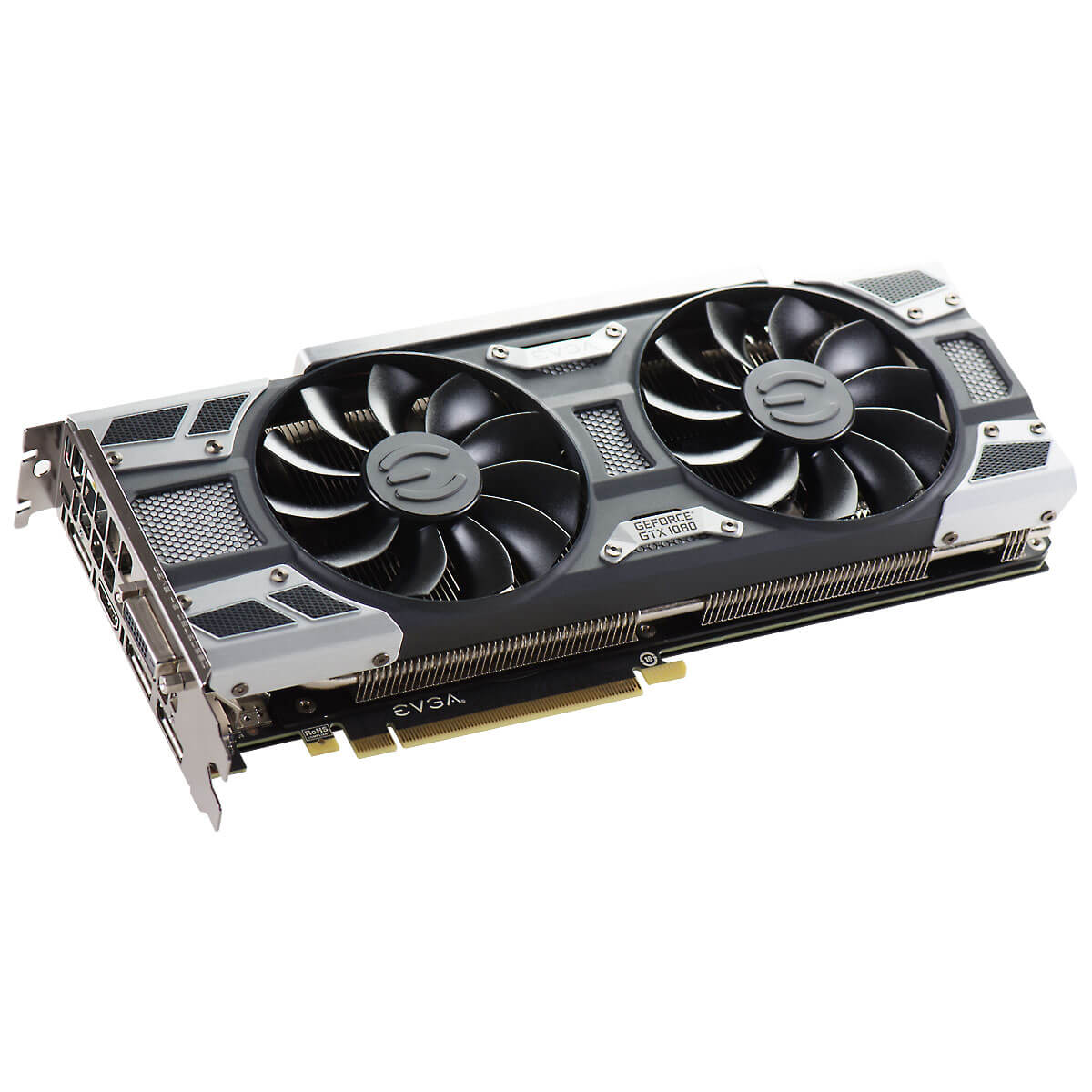

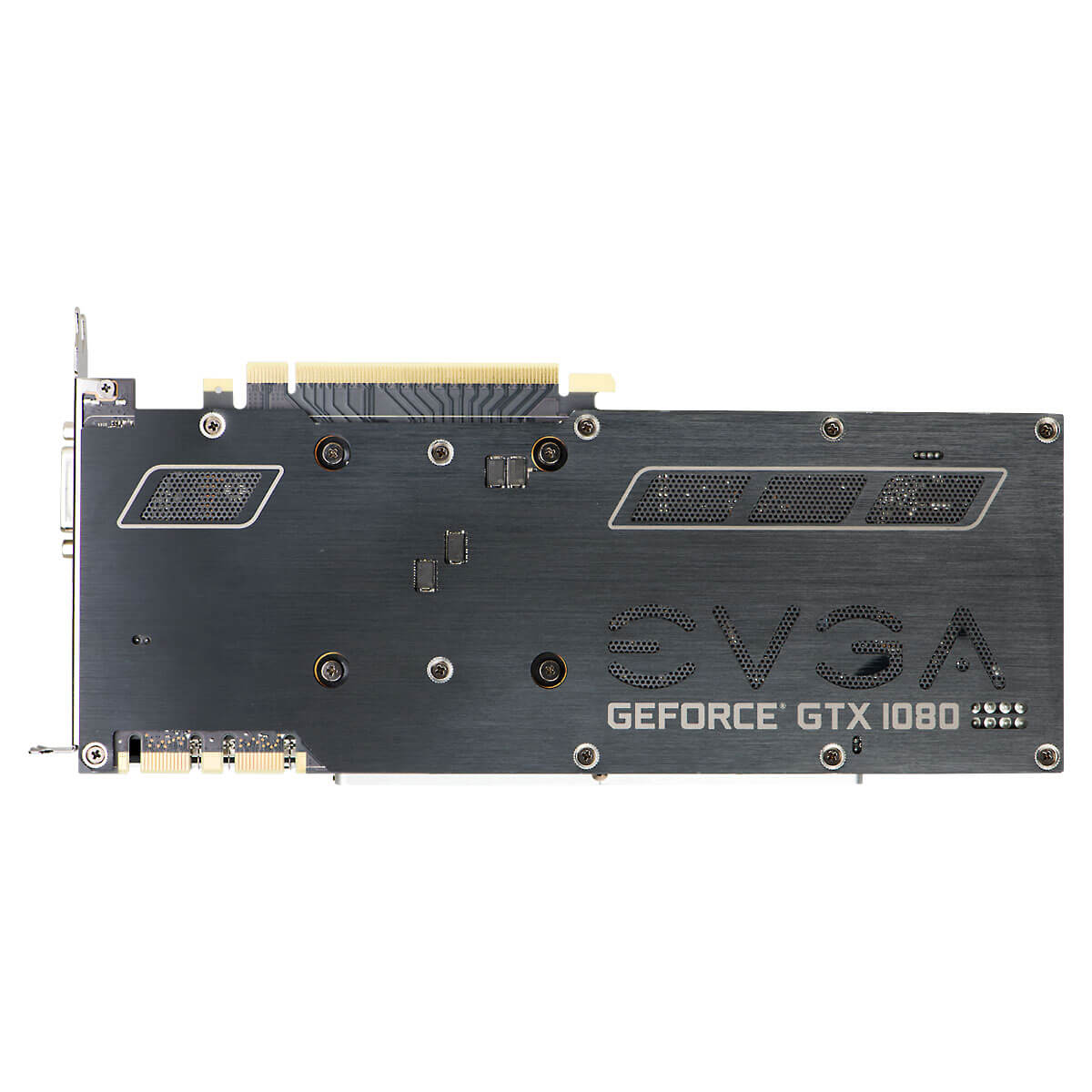

| EVGA GeForce GTX 1080 SC ACX 3.0 | 08G-P4-6183-KR | 1708/1847 | YES (WHITE) | 1 | ACX 3.0 | 5 + 1 | Better | Yes |

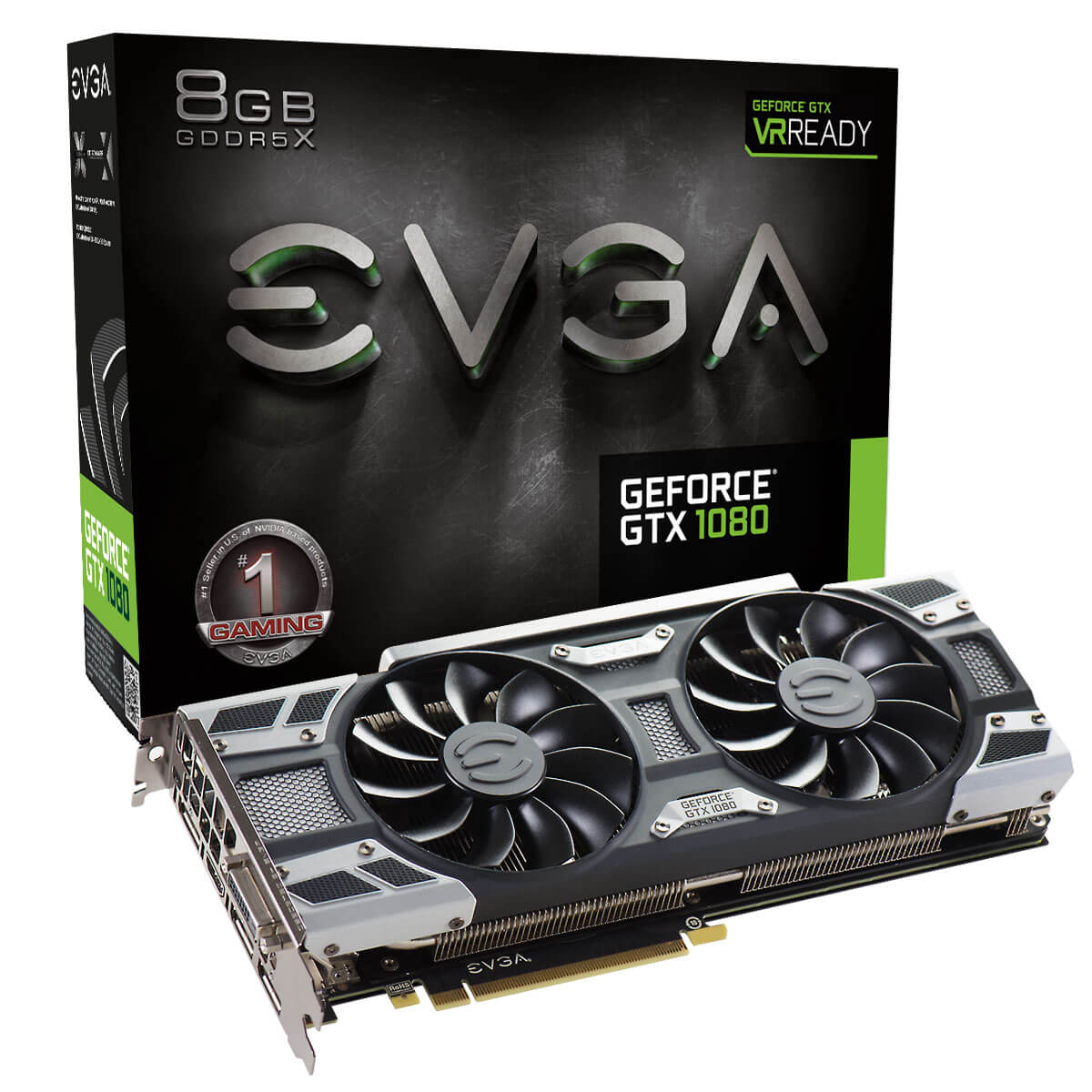

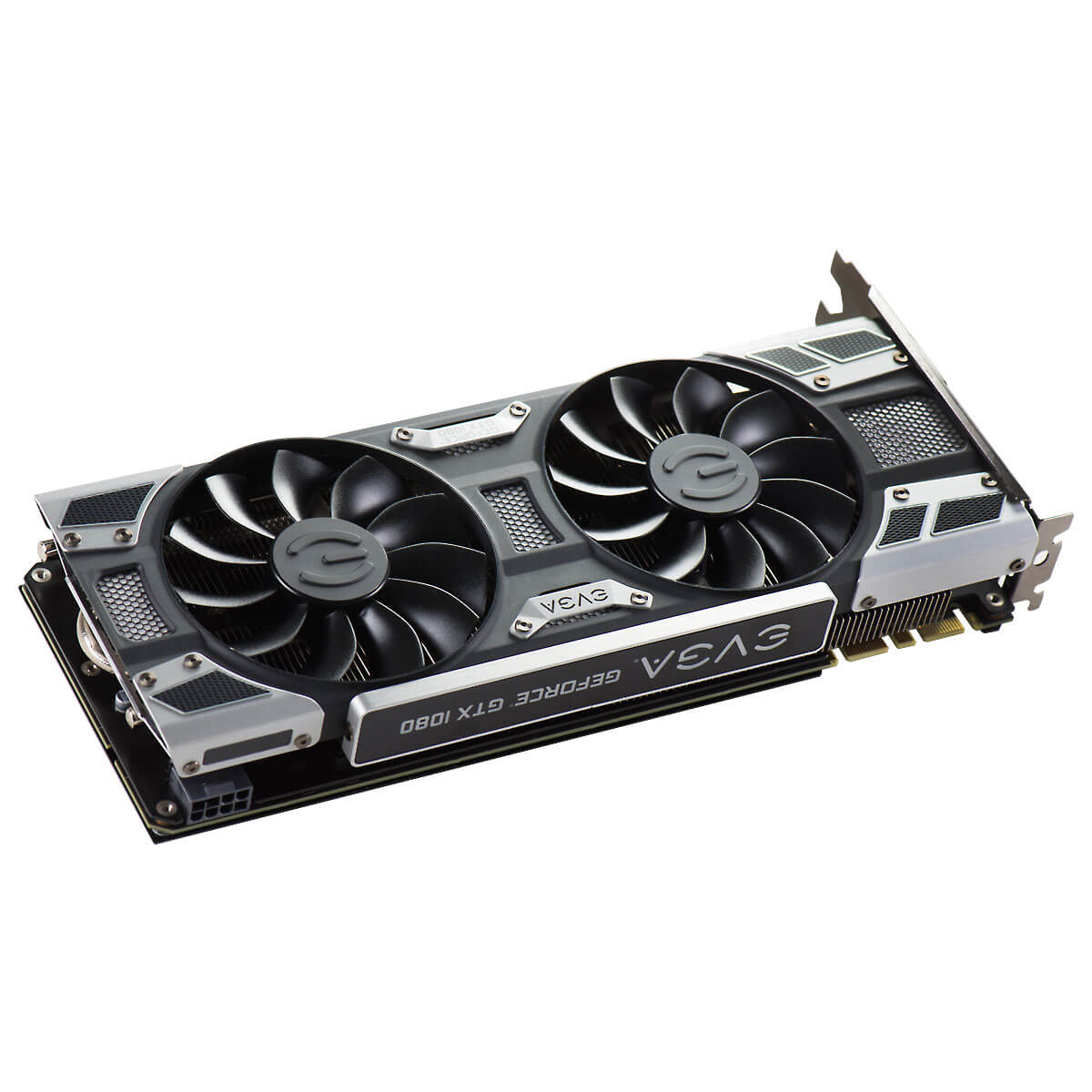

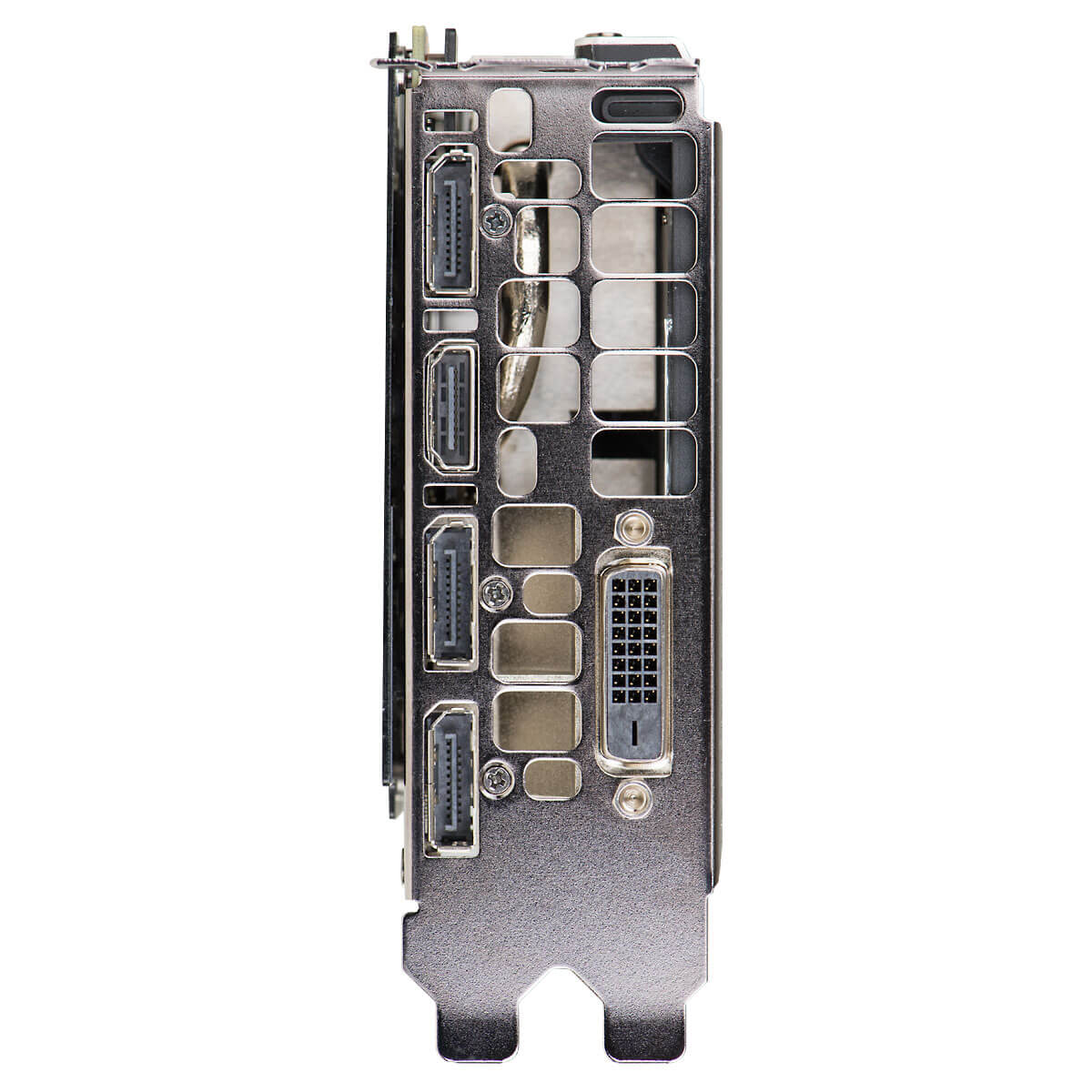

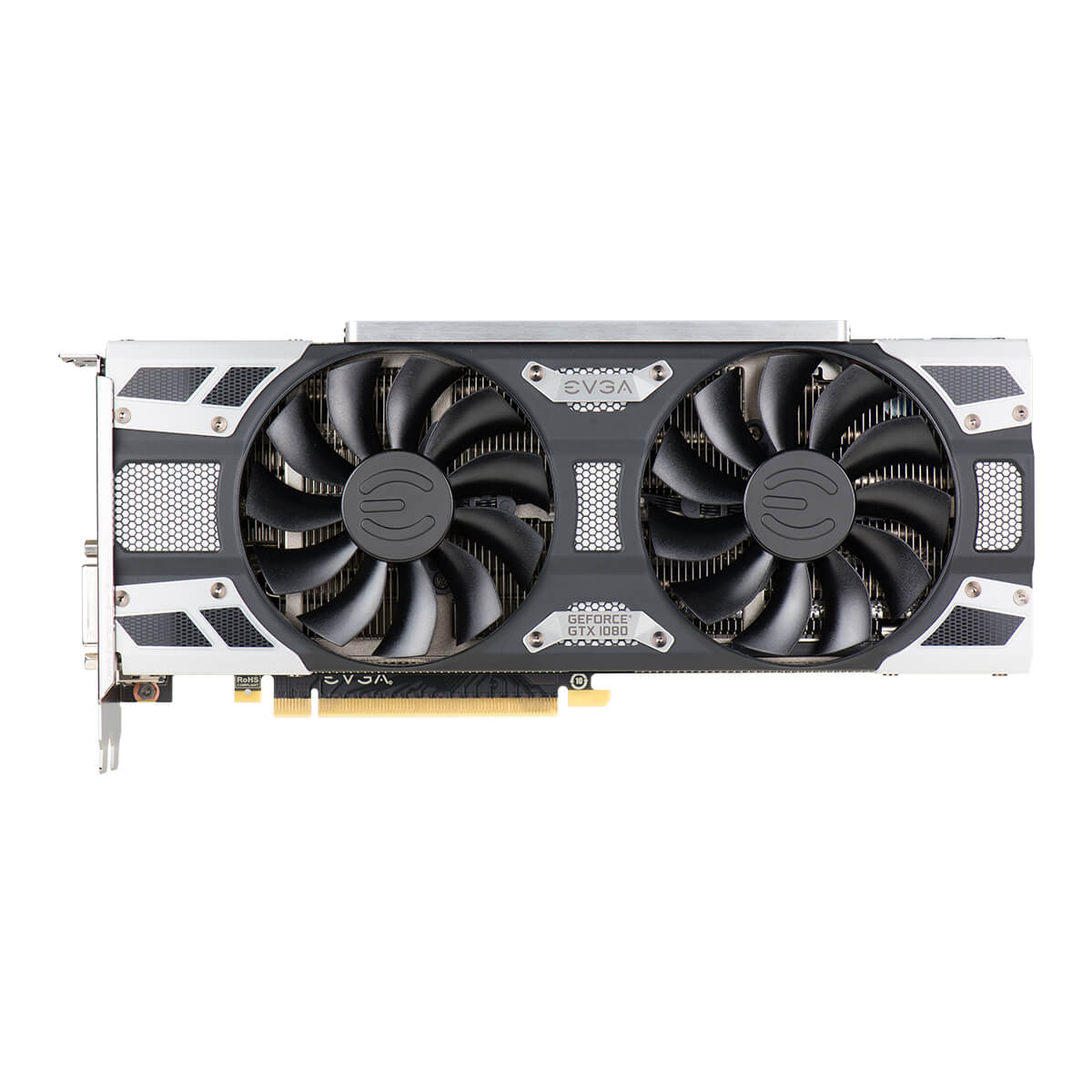

| EVGA GeForce GTX 1080 ACX 3.0 | 08G-P4-6181-KR | 1607/1733 | YES (WHITE) | 1 | ACX 3.0 | 5 + 1 | Good | Yes |

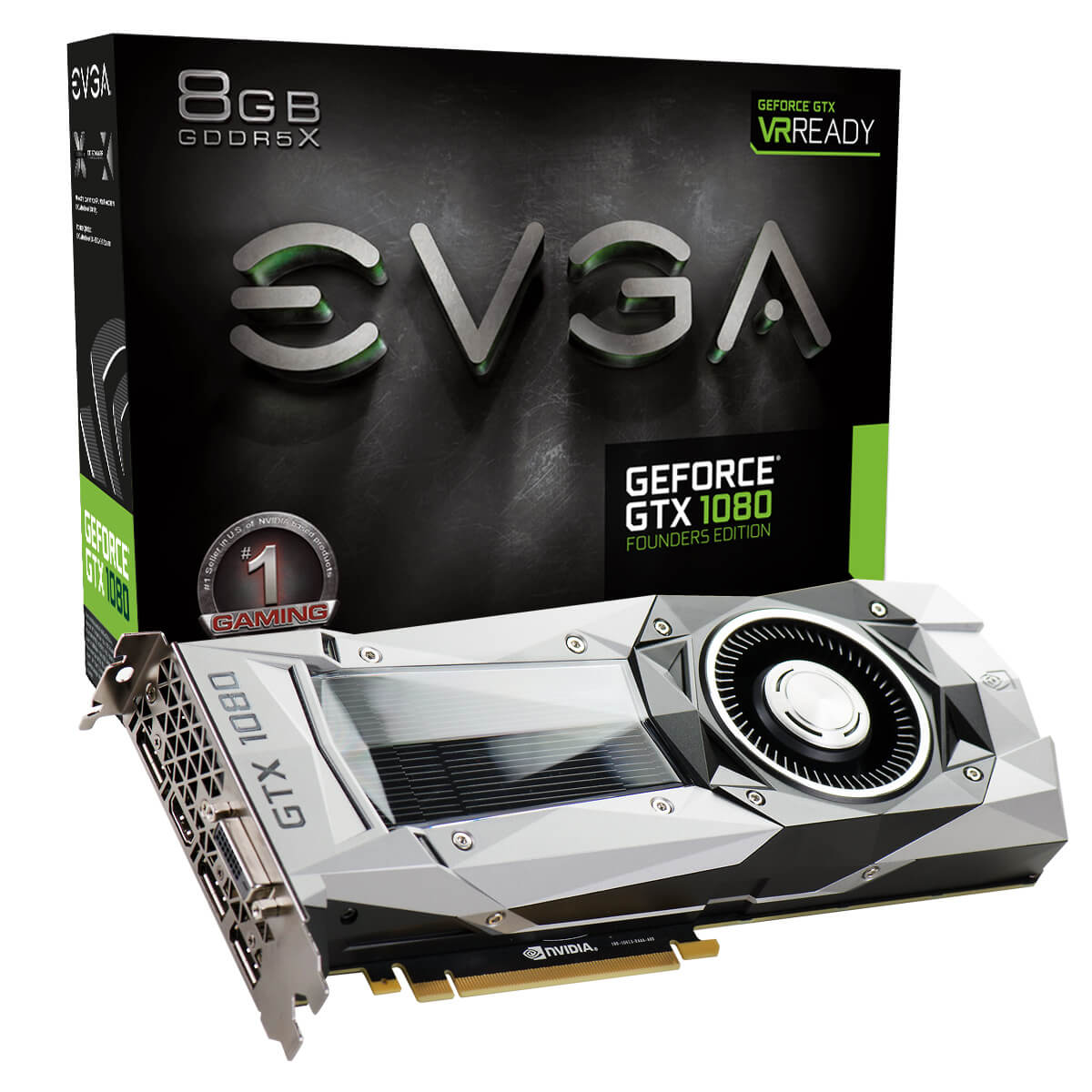

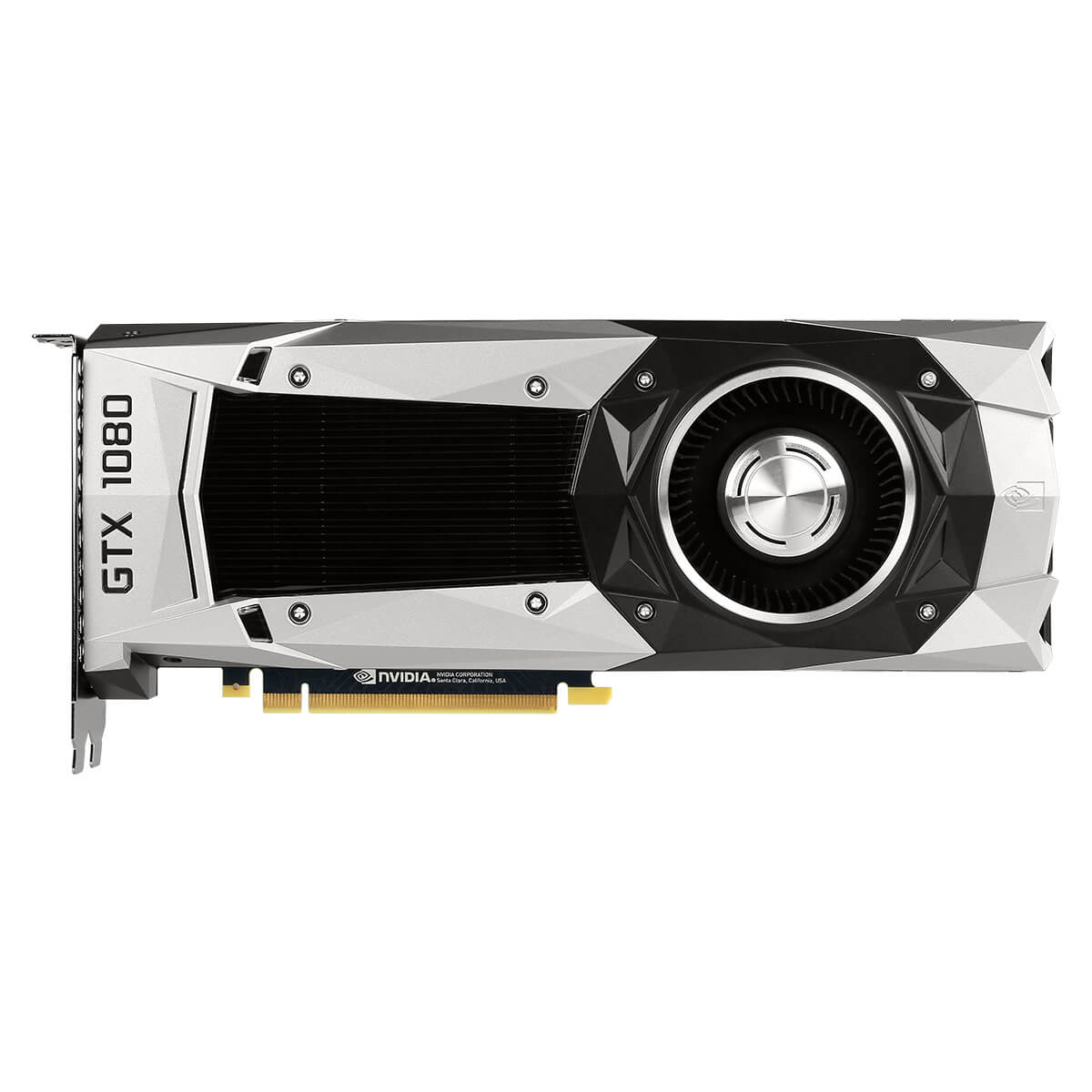

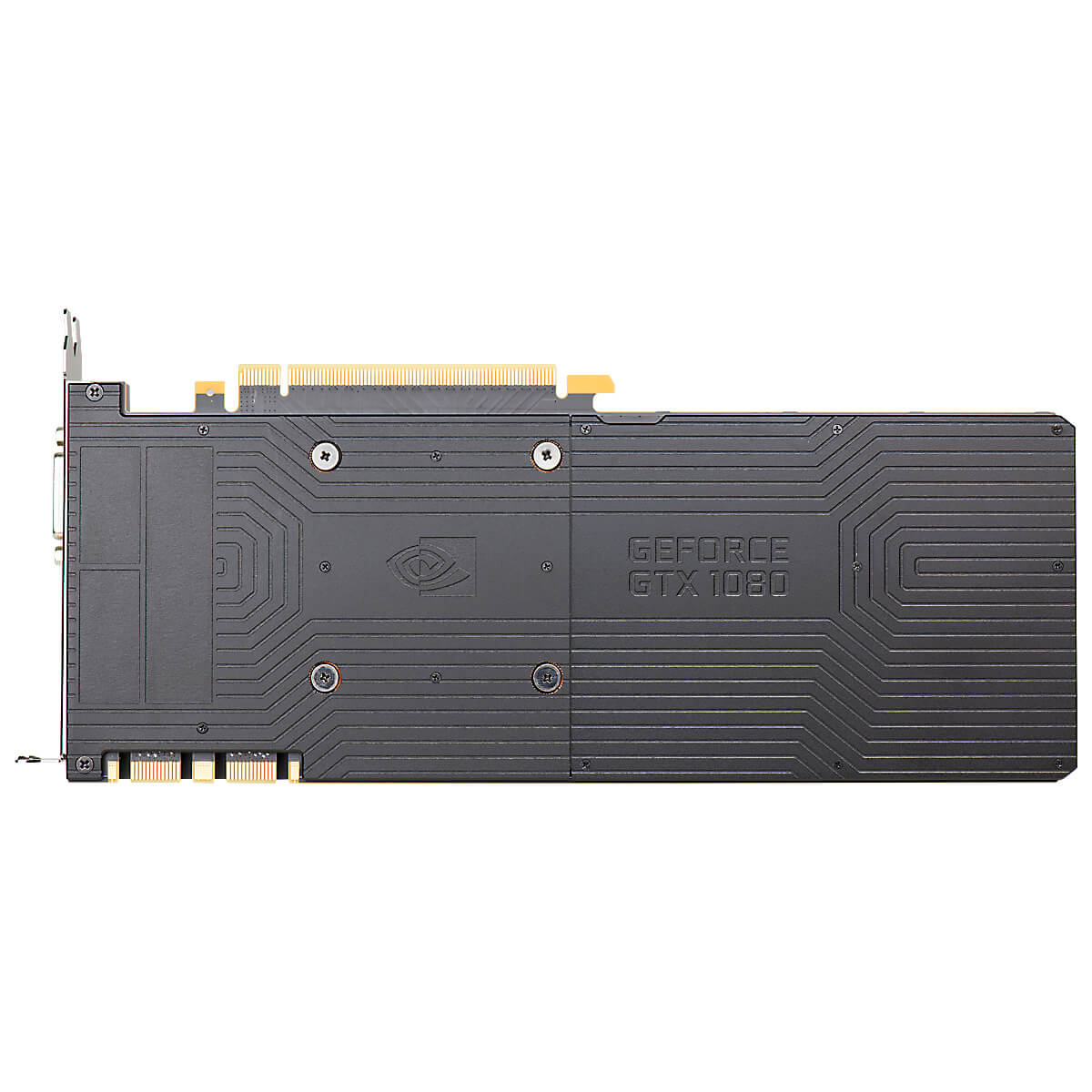

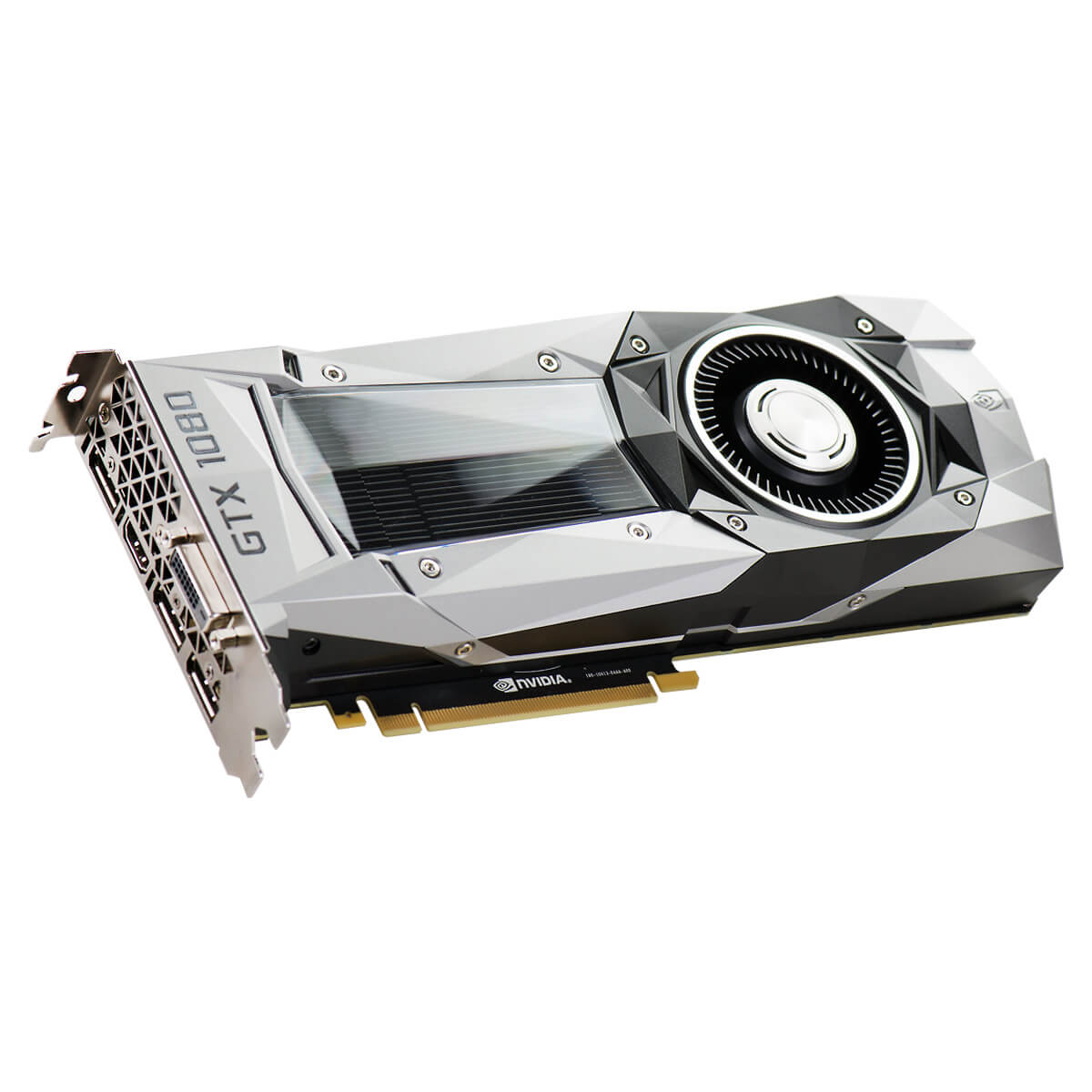

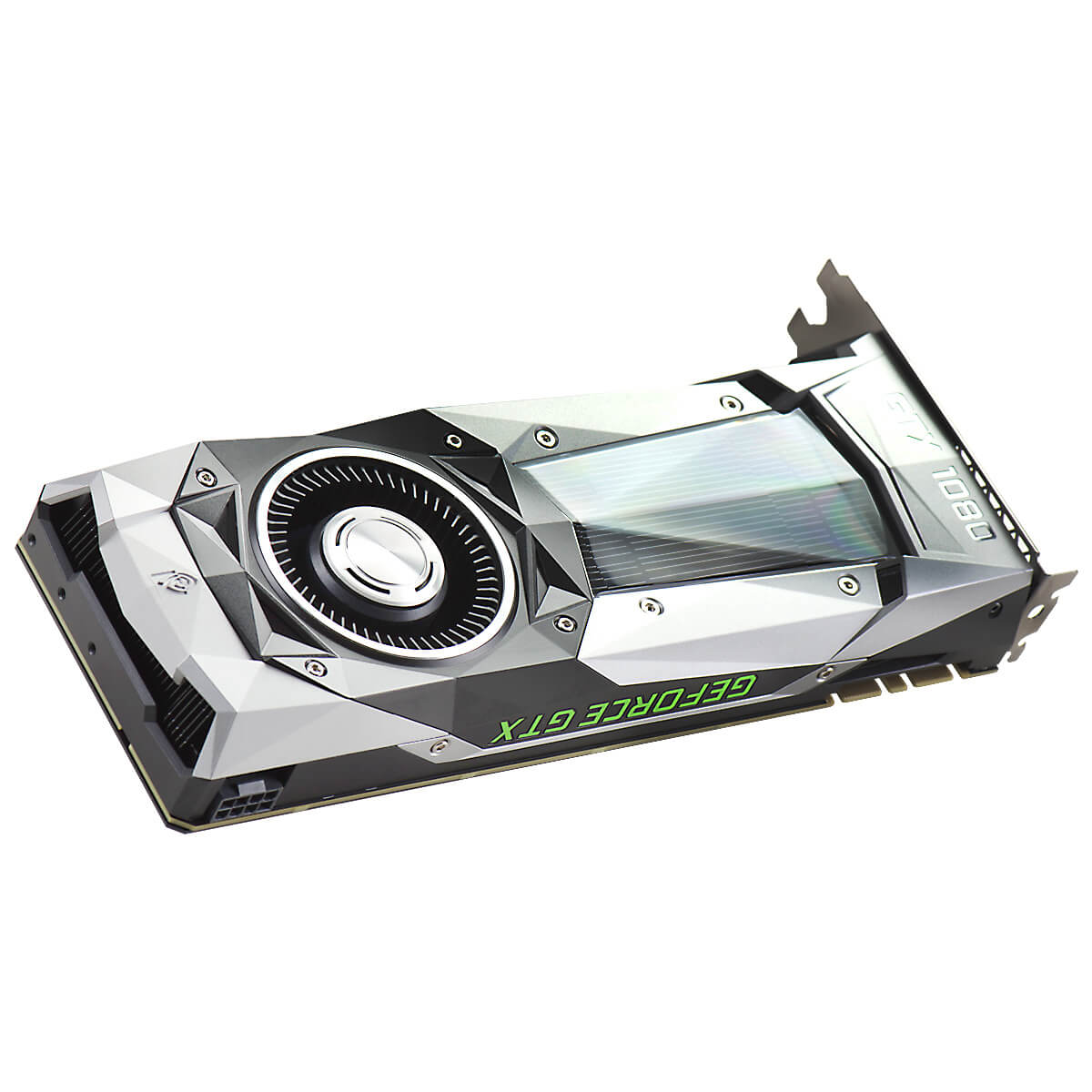

| EVGA GeForce GTX 1080 Founders Ed. | 08G-P4-6180-KR | 1607/1733 | YES (GREEN) | 1 | Single Fan | 5 + 1 | Good | Yes |
