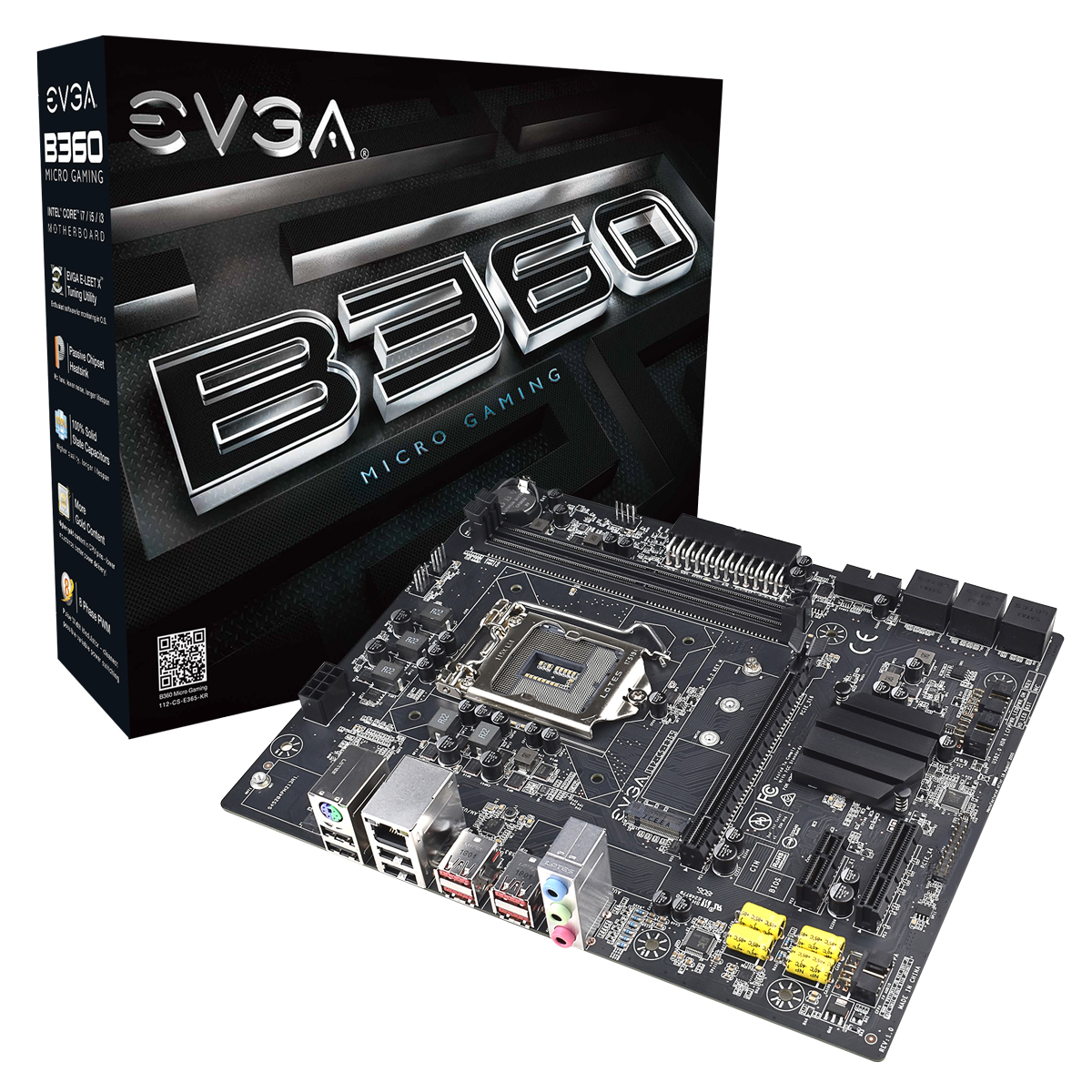

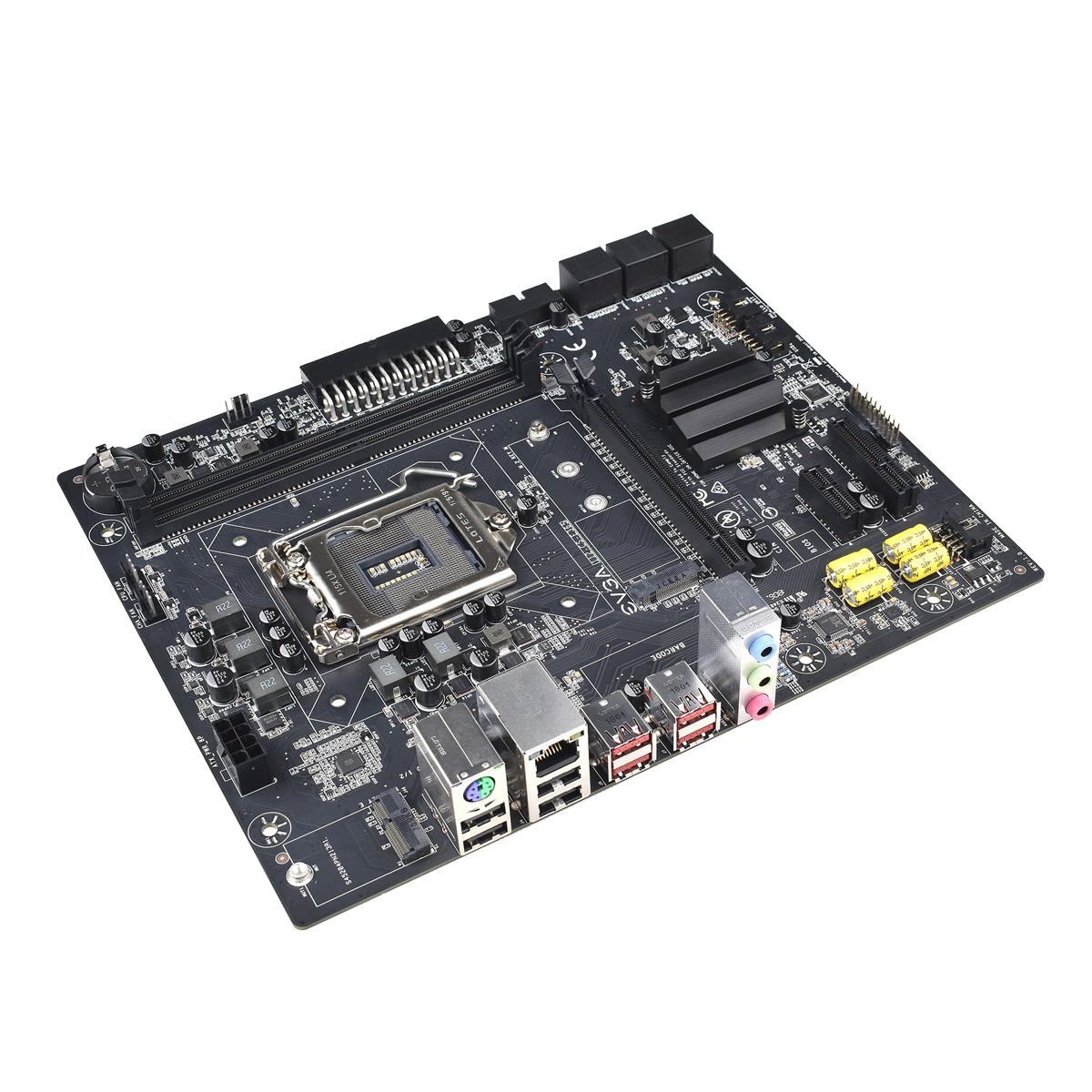

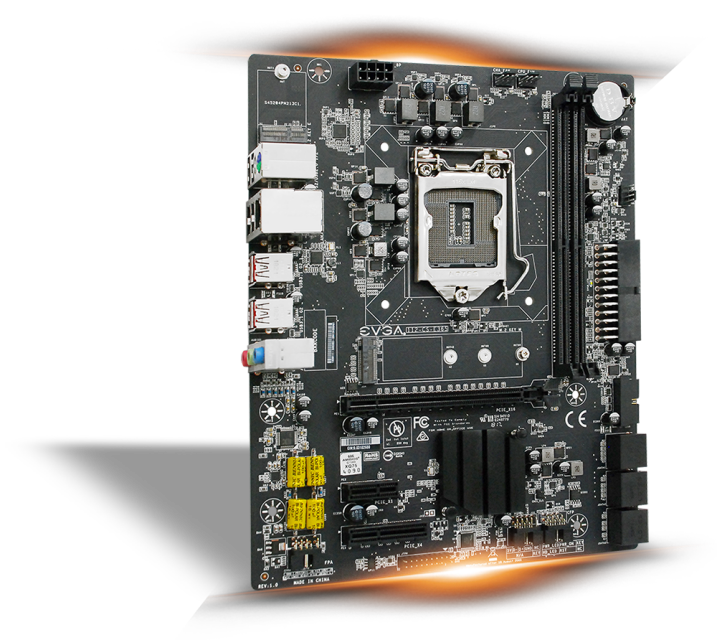

EVGA B360 Micro Motherboard EVGA B360 Micro Motherboard EVGA B360 Micro Motherboard

A Powerful and Affordable design

The EVGA B360 Micro Gaming is the discerning gamer's choice for building a powerfully affordable system. This motherboard eliminates frills and unneeded features, while still providing a solid platform capable of gaming, work, or study.

Packing tried and true features, without breaking the bank! Make the EVGA B360 Micro Gaming your next motherboard and enjoy modern performance and features for a budget-friendly price.

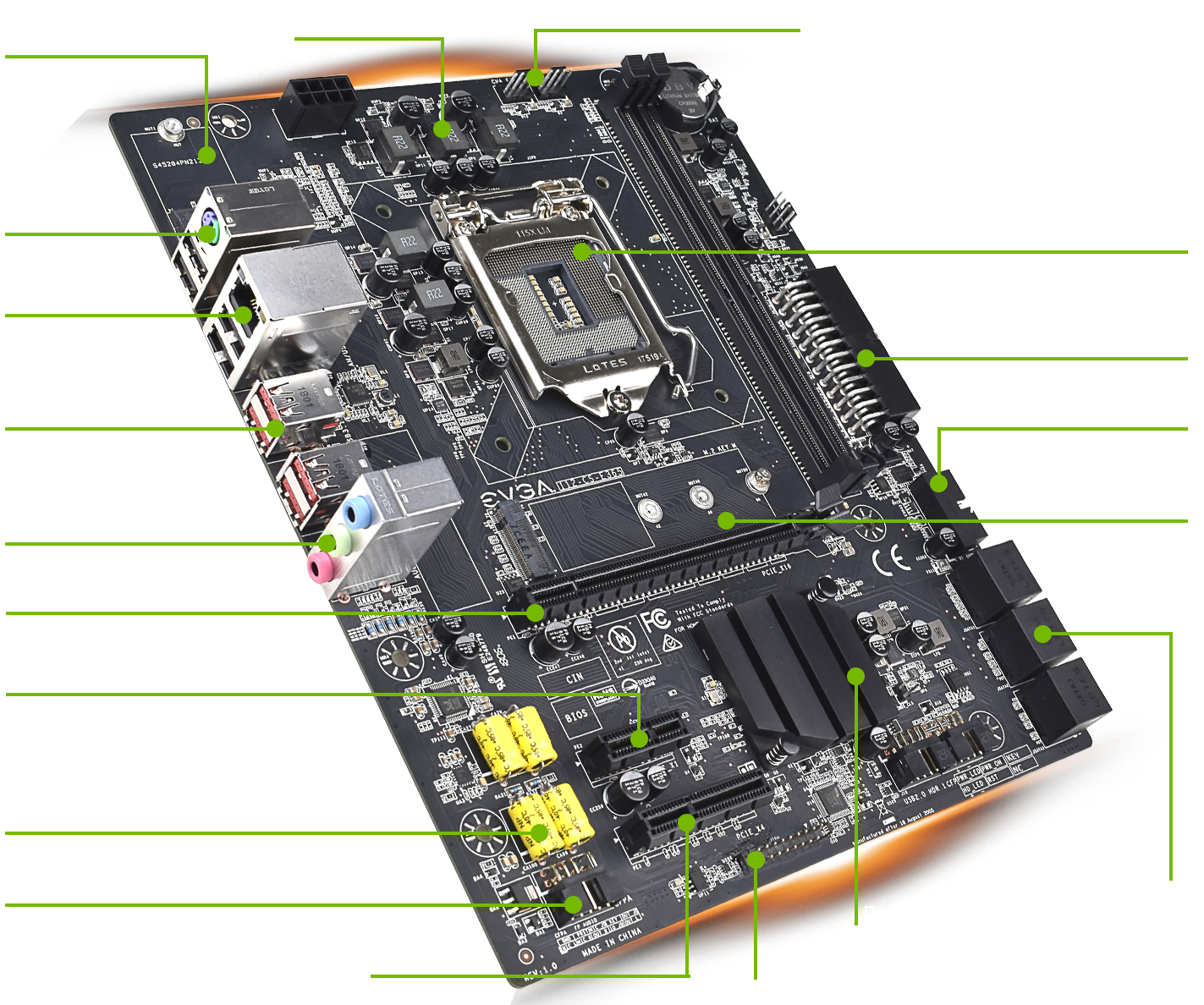

EVGA B360 Micro Motherboard Features

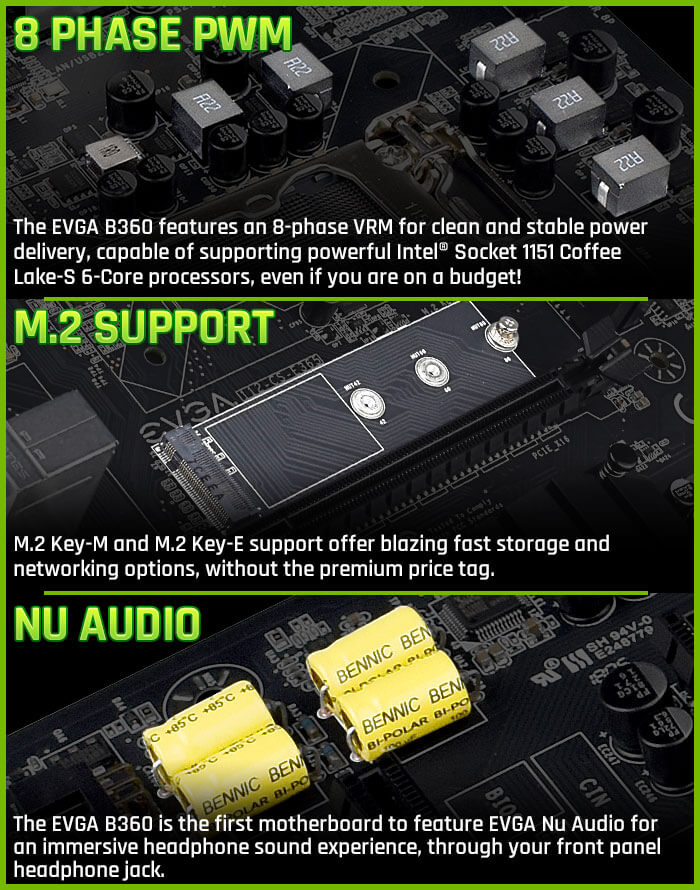

Enjoy the features that are essential for a practical and modern motherboard. The EVGA B360 Micro Gaming has several features to make installation easy, with the flexibility to be used as a high-end gaming system.

EVGA B360 Micro Motherboard


  • Chipset - Intel® B360 Express
  • Form Factor - mATX
  • 1x M.2 Key-E CNVi-Ready Slot For Wifi/Bluetooth
  • 1x M.2 Key-M 80mm PCIe/NVME Slot
  • 5x USB 2.0 (1x internal via front panel, 4x external)
  • 2x USB 3.1 Gen 1 (internal via front panel)
  • 4x USB 3.1 Gen 2 Type-A (external)
  • Memory - 2x DIMM Dual-Channel DDR4 2667MHz (Up to 32GB)
  • SATA - 6x Native SATA 6Gb/s Ports
  • Ethernet - Intel® i219V Gigabit LAN (10/100/1000)
  • Audio - Realtek Audio (ALC888) + SV3H615 3D Headphone Amp
  • PCIe - 1 Slot x1, 1 Slot x4, 1 Slot x16

Special Features:

  • 8 Phase VRM
  • EVGA E-LEET X Tuning Utility™
  • SATA Ports Support Hot Plug
  • M.2 NVMe SSD Support
  • PCIe 3.0 Support For Low Power Consumption
  • 3x 4-Pin PWM Controlled Headers
  • 5.1 Channel HD Audio Support with EVGA Nu Audio
  • Trusted Platform Module
  • 150% Increase in CPU Gold Content
EVGA B360 Micro Gaming


  • Chipset: Intel B360
  • Socket: LGA1151, Supports Intel Socket 1151 Processors
  • Form Factor: mATX
  • Memory: 2 DIMM Dual-Channel DDR4 2667MHz (up to 32GB)
  • USB: 4x USB 3.1 Gen 2 (Type-A) / 2x USB 3.1 Gen 1 (2 via int. header) / 5x USB 2.0 (1 via int. header)
  • USB 3.1 (Internal Header): 4 Ports
  • SATA: 6x SATA III 6Gb/s
  • M.2 Key-M: 1x 80mm Slot (Up to 32Gb/s)
  • M.2 Key-E: 1x 32mm Slot
  • Ethernet: 1x Intel® i219V Gigabit NIC
  • Audio: 5.1 Channel HD + EVGA Nu Audio
  • Fan Headers: 3 PWM
  • PCB: 4 Layers

Key Features

  • Supports Intel Core i3, i5, and i7 Socket 1151 Coffee Lake-S Processors
  • 8-Phase Power Design
  • 1x M.2 Key E (32mm) + 1x M.2 Key M (80mm)
  • SATA III 6GB/s
  • EVGA Nu Audio
  • 150% Increased Socket Gold Content
  • PCI Express 3.0 Support
  • Passive Chipset Heatsink
  • E-LEET X Software Support
  • Windows 10 64bit Support
  • 3 Year Warranty
